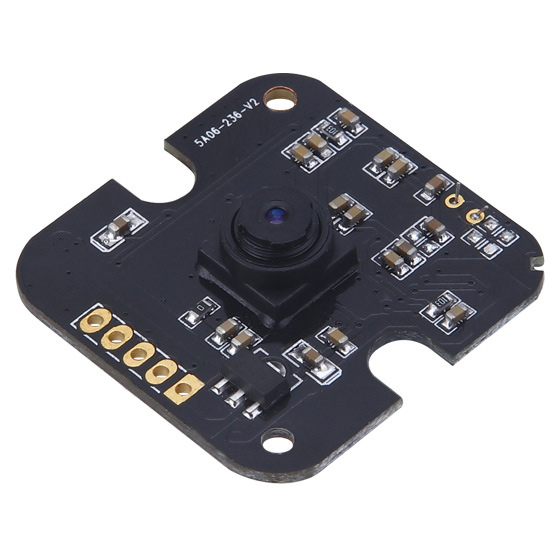

U2M5A06 2MP OV2643 USB 2.0 camera module UVC PCBA
U2M5A06 2MP OV2643 USB 2.0 camera module UVC PCBA
Catalog:
SKU: U2M5A06
Sensor:
Resolution:
$13.50
Price: $10.80 - $13.50
Weight: 25 g
Dimensions: 38 mm × 38 mm × 50 mm
2MP 1080P USB2.0 camera with OV2643 Sensor
| Product number | |||
| Sensor | OminiVision OV2643 | ||
| MAX effective pixels | 1920 * 1080 | ||
| Sensor Size | 1/4 inch | ||
| Pixel Size | 2.2μm x 2.2μm | ||
| Sensitivity | 1250mV/(Lux-sec) | ||
| Output parameters | Video format | Rosolution | Max Frame rate |
| MJPG/YUY2 | 720P | 30fps | |
| MJPG/YUY2 | 2MP | 15fps | |
| focusing | Fixed / Manual | ||
| max S/N ratio | 39dB | ||
| dynamic range | 66dB | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Working Current | <200mA | ||
| Sleep mode Current | <10mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||

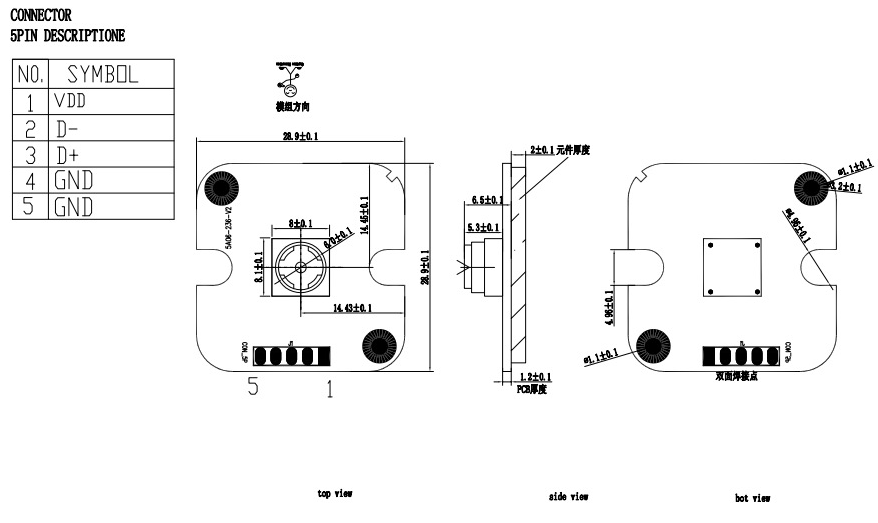

| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | 0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
| Lens | Lens Construction | 4P+IR | |
| F/NO | F2.5 | ||
| EFL | 4.0mm | ||
| BFL | 1.05mm | ||
| FOV | 70° | ||
| TV Distortion | <5% | ||
| Relative ilumination | 50% | ||
| IR Filter | 650±10nm | ||
