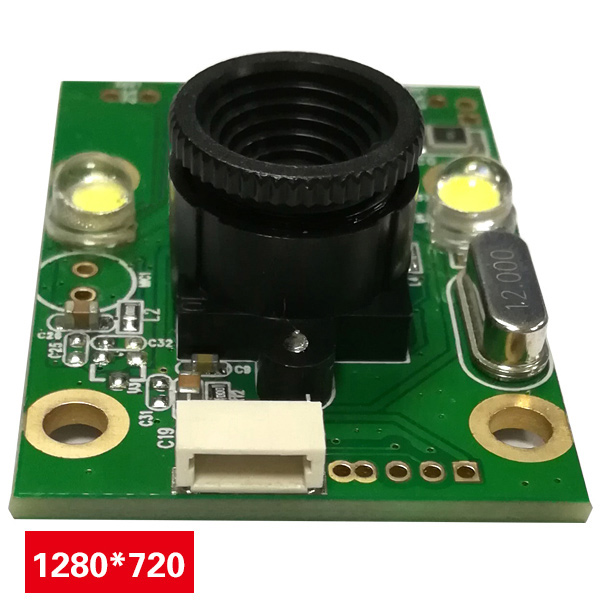

U1M104 1/4" 1MP USB2.0 Camera board YUY2 MJPEG 30fps 42mm*30mm
U1M104 1/4" 1MP USB2.0 Camera board YUY2 MJPEG 30fps 42mm*30mm
Catalog:
SKU: U1M104
Resolution:
$19.90
Price: $15.90 - $19.90
Weight: 0.015 kg
Dimensions: 3.8 cm × 3.8 cm × 0.9 cm
| Product number | |||
| MAX effective pixels | 1280 * 720 | ||
| Pixel Size | 3um x 3um | ||
| Sensor Size | 1/4" | ||
| Output parameters | Rosolution | MJPG | YUY2 |
| 320 * 240 | 30fps | 30fps | |
| 640 * 480 | 30fps | 30fps | |
| 800 * 600 | 30fps | 20fps | |
| 1280 * 720 | 30fps | 9fps | |
| focusing | Fixed / Manual | ||
| max S/N ratio | 50dB | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| White Balance | Automatic / Manual | ||
| Exposure Control | Automatic / Manual | ||
| Voltage | DC 5V | ||
| Electric current | 90mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | -0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
