U8MS179-3 8MP SONY IMX179 Auto Focus USB 3.0 camera module UVC Android
U8MS179-3 8MP SONY IMX179 Auto Focus USB 3.0 camera module UVC Android
Catalog:
SKU: U8MS179-3
Sensor:
Resolution:
$69.00
Price: $57.50 - $69.00
Weight: 0.05 kg

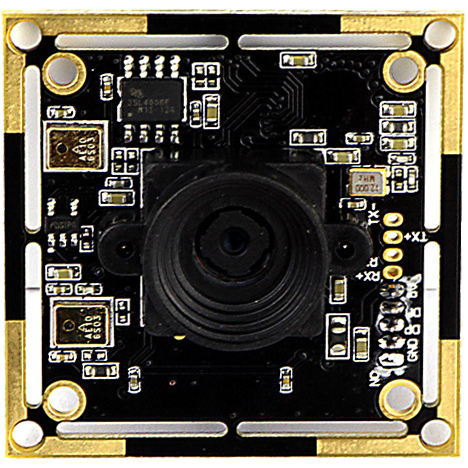

8MP 4K UHD USB3.0 camera with Sony 1/3.2" IMX179 Sensor
Auto Focus (AF), use 8MP CMOS sensor IMX179
USB3.0 interface. Usually using MJPEG, transmission speed to achieve the most ideal state
Speedy autofocus, with rapid stability
the focal length (F) adjustable, the focus can be selected from the 0-1023 value. With a special near distance at the same time, to ensure the operation of distance vision
| Product number | |||
| Sensor | IMX179 | ||
| MAX effective pixels | 3280 * 2464 | ||
| Sensor Size | 1/3.2 inch | ||
| Pixel Size | 1.4μm x 1.4μm | ||
| Image area | / | ||
| Output parameters | video format | Rosolution | Max Frame rate |
| YUY2,MJGP | <=8mp | 25fps | |
| input clock frequency | / | ||
| focusing | auto focus | ||
| max S/N ratio | 36dB | ||
| dynamic range | 60dB | ||
| dark current | / | ||
| Interface type | USB3.0, compitable with USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Electric current | / | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | 0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
