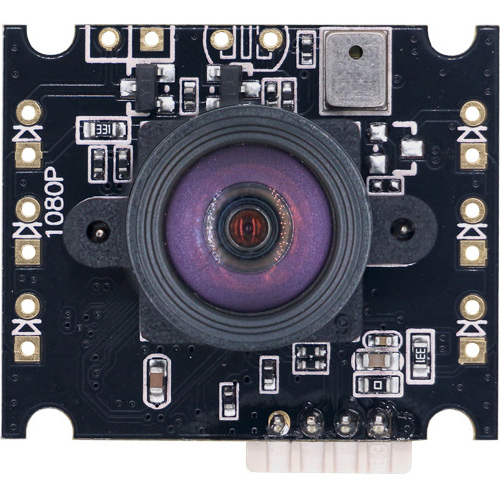

U2MH2131 1/2.7" HM2131 2MP 1080P USB2.0 Camera board YUY2 MJPEG

U2MH2131 1/2.7" HM2131 2MP 1080P USB2.0 Camera board YUY2 MJPEG

SKU: U2MH2131

Sensor:

Video Coding:

Resolution:

$41.50
Price: $31.90 - $41.50
Weight: 0.05 kg
Dimensions: 3.2 cm × 3.2 cm × 26 cm
Product number
SensorHM2131
MAX effective pixels1920 * 1080 (Full 1928 * 1088)
Pixel Size3um x 3um
Sensor Size1/2.7" (Diagonal 6.64mm)
Image area5784μm x 3264μm (Full)
Output parametersvideo formatRosolutionMax Frame rate
YUY2/MJPEG(default)1920 * 108030fps
YUY2/MJPEG(default)1280 * 72030fps
YUY2/MJPEG(default)640 * 480 30fps
Focusingfixed / Manual
max S/N ratio62dB
dynamic range88dB
Sensitivity2.8V/Lux-sec@530nm
Scan ModeProgressive
Interface typeUSB2.0
Adjustable parameterBrightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Exposure
White BalanceAutomatic / Manual
Exposure ControlAutomatic / Manual
VoltageDC 5V
Electric current200mA
Main chipDSP/SENSOR/FLASH
AECSupport
AEBSupport
AGCSupport
PCBA SizeCustomized
Storage temperature-30°C to 80°C
working temperature-20°C to 70°C
USB Wire rodCustomized 2M
Board Size32mm x 32mm
System supportWinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
Lens

Optional
2.4mm 170 Degree / 2.45mm 150 Degree / 2.8mm 135 Degree / 3.3mm 140 Degree / 3.6mm 125 Degree / 6mm 60 Degree / 8mm 40 Degree / 12mm 20 Degree
3mm 130 Degree (None Distortion)  / 3.5mm 120 Degree (None Distortion) / 4mm 100 Degree (None Distortion)

Mic
Support
