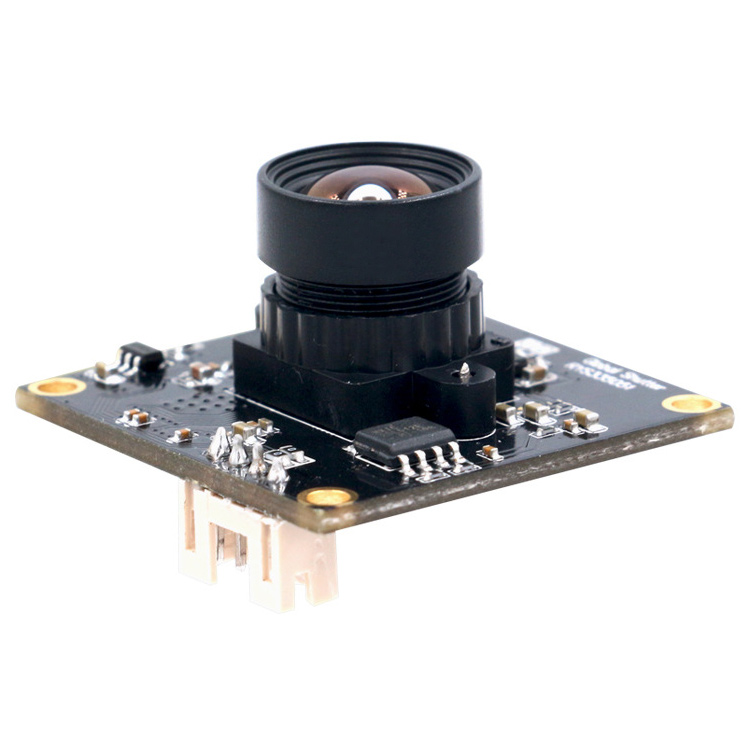

U3KV2051-GS 1/5" OV2051 0.3MP 640X480 Global Shutter USB2.0 Camera board H.264 YUY2 MJPEG
| Product number | |||
| Sensor | OV2051 | ||
| MAX effective pixels | 640 * 480 | ||
| Pixel Size | 3um x 3um | ||
| Sensor Size | 1/5" | ||
| Image area | 3910μm x 3410μm | ||
| Output parameters | video format | Rosolution | Max Frame rate |
| YUY2/MJPEG(default) | 640 * 480 (default) | 90fps | |
| Focusing | ffixed / Manual | ||
| max S/N ratio | 39dB | ||
| dynamic range | 69.6dB | ||
| Sensitivity | 2.8V/Lux-sec@530nm | ||
| Shutter | Global Shutter | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Exposure | ||
| White Balance | Automatic / Manual | ||
| Exposure Control | Automatic / Manual | ||
| Voltage | DC 5V 4pin 2.0mm pitch | ||
| Electric current | 140mA ~ 200mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 80°C | ||
| working temperature | -20°C to 70°C | ||
| USB Wire rod | Customized 2M | ||
| Board Size | 32mm x 32mm | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
| Lens | 2.15mm (None Distortion) / 2.8mm / 3.6mm / 6mm / 8mm / 12mm (optional) | ||
