U3RS5M-14F USB3.0 industrial camera module Rolling shutter 5MP 14FPS industrial cameras

Catalog:

SKU: U3RS5M-14FC

Sensor:

MT9P031

Video Coding:

YUY2

Resolution:

$149.00

Price: $129.60 - $149.00

Weight: 0.05 kg

U3RS USB3.0 industrial camera module description:

U3RS USB3.0 industrial camera module, is a long-term stability of the self-healing function USB3.0 industrial camera module. USB3.0 industrial camera during normal operation, if outside interference cause abnormal camera work (including computer USB3.0 interface disturbed abnormal), U3GS USB3.0 industrial camera module can detect abnormalities and automatically adjusts into normal operation status. Because the camera eliminates the abnormal crash, you need to go to the customer site maintenance trouble restarting the device. You save a lot of substantial maintenance costs.
U3GS USB3.0 industrial camera industrial camera module as a board module, to achieve the ultimate in size, only 26mm × 26mm size. In such a small size, a pixel from 300,000 to 500 million pixels more sensor module, the sensor comprising a high-speed shutter and global exposure exposure. In the circuit module using a special low-noise devices, image output cleaner, more realistic, the image data processing easier.

U3RS5M-14F USB3.0 industrial camera module features:

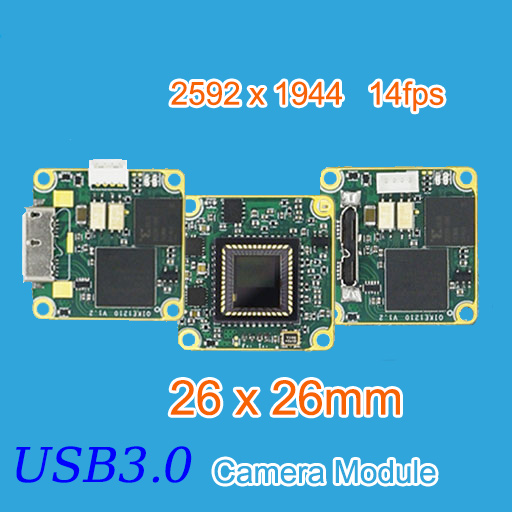

● board small size, only 26mm × 26mm

● Low noise design, clean and lifelike image

● Up to 5MP

● Up to 210FPS

● USB3.0 Interface

● Support USB port plug automatically restore the image transmission

● do not lose a few, stable transmission in real time

● opto-isolated external trigger and external synchronization

● 32-bit and 64-bit Windows system, comprising WinXP / 7/8/10 system

● provide C language dll dynamic library can be called a variety of programming languages, provide VC, C # example source code

● Support for multi-camera working at the same time, up to a maximum of 32 camera modules single PC, while working

● Single wire solutions, USB 3.0 while completing data transmission and power supply

● Support firmware upgrade online

U3RS5M-14FC industrial camera module parameters:

Resolution	2592 x 1944
Sensor Model	ON MT9P031
sensor type	CMOS
Shutter Type	Rolling Shutter
Pixel size	2.2μm x 2.2μm
Size target surface	1/2.5 inch
ADC bit depth	12 bits
Dynamic Range	70.1 dB
Signal to Noise Ratio	38.1 dB
Frame rate	14 fps
Data Format	Bayer8, Mono8, RGB, YUV
interface	USB 3.0
Synchronize	Internal synchronization, external synchronization or software trigger
Exposure Control	AE, manual
White balance control	Automatic white balance, manual white balance, one key balance
Programmable control	Image size, frame rate, exposure, white balance, mirroring, gain, noise reduction, enhanced, brightness, contrast, saturation, gamma, camera ID, camera name, etc.
support system	32-bit or 64-bit Windows XP / 7/8/10
Support the development of language	Dynamic library supports C, C ++, VB, C #, Labview and Matlab, etc., provide VC code source examples
input Output	An opto-isolated trigger input, a flash synchronization output isolation optocoupler
powered by	Powered by USB 3.0 interface
Power (typical)	2.0W
size	26 mm × 26mm
range of working temperature	-20 °C - 50 °C
Working humidity	10% - 90% RH (non-condensing)

U3RS5M-14FC industrial camera module spectral response curves:

U3RS USB3.0 industrial camera module Mechanical dimensions:

Delivery list:

1, industrial camera module 1pc;

2, USB3.0 Cable 1pc;
