U5MV5648-AF 5MP 1/4" OV5648 USB 2.0 Auto Focus camera module UVC MJPG PCBA YUY2
U5MV5648-AF 5MP 1/4" OV5648 USB 2.0 Auto Focus camera module UVC MJPG PCBA YUY2
Catalog:
SKU: U5MV5648-AF
Sensor:
Resolution:
$31.50
Price: $24.20 - $31.50
Weight: 25 g

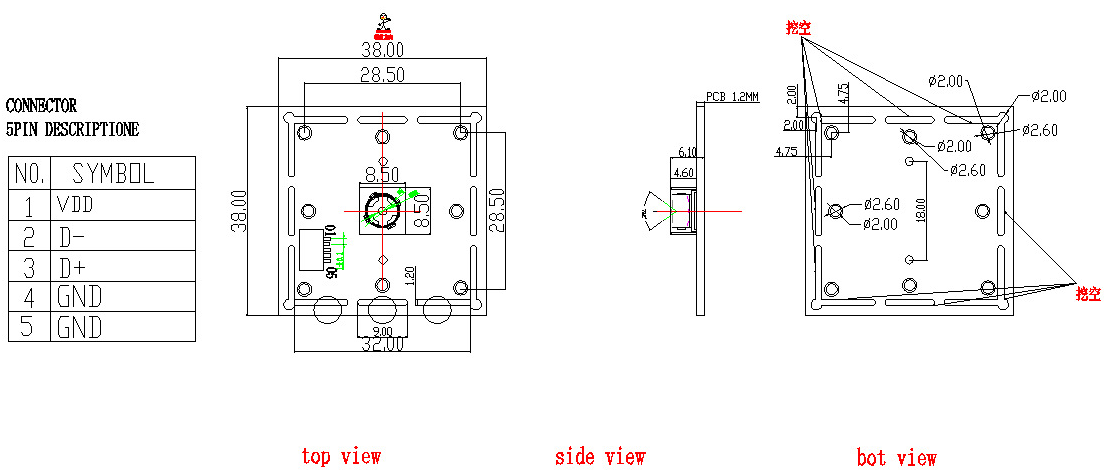

Dimensions: 38 mm × 38 mm × 50 mm
5MP USB2.0 camera with OV5648 Sensor
| Product number | |||
| Sensor | OminiVision OV5648 | ||
| MAX effective pixels | 2592 * 1944 | ||
| Sensor Size | 1/4 inch | ||
| Pixel Size | 1.4μm x 1.4μm | ||
| Dark Current | 8mV/s @60°C | ||
| Sensitivity | 600mV/(Lux-sec) | ||
| Output parameters | Video format | Rosolution | Max Frame rate |
| MJPG/YUY2 | 640x480 | 30fps | |
| MJPG/YUY2 | 800x600 | 30fps | |
| MJPG/YUY2 | 720P 1280x720 | 30fps | |
| MJPG/YUY2 | 2MP 1920x1080 | 30fps | |
| MJPG/YUY2 | 5MP 2592x1944 | 10fps | |
| focusing | Fixed / Manual | ||
| max S/N ratio | 34dB | ||
| dynamic range | 67dB@8X gain | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Working Current | <180mA | ||
| Sleep mode Current | <10mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -30°C to 70°C | ||
| working temperature | 0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
| Lens | Lens Construction | 4P+IR | |
| F/NO | F2.5 | ||
| EFL | 1.3mm | ||
| BFL | 2.5mm | ||
| FOV | 70° | ||
| TV Distortion | <1% | ||
| Relative ilumination | 50% | ||
| IR Filter | 650±10nm | ||
