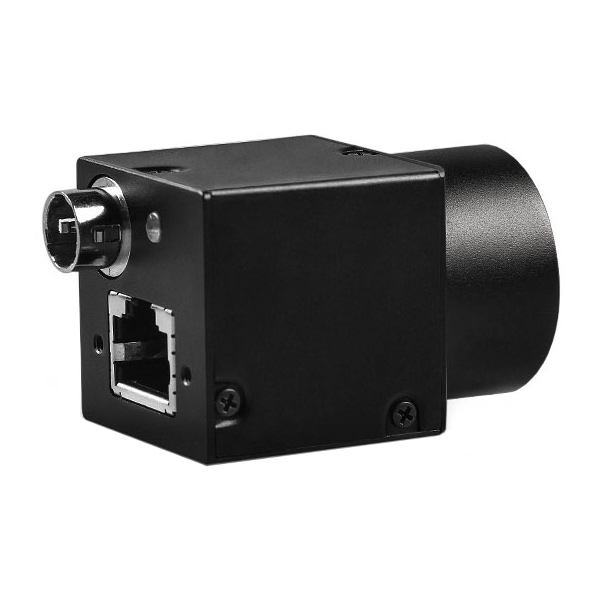

Aptina MT9P031 5MP@14FPS Monochrome Mini GIGE industrial camera with POE

SKU: MEGS5M-14FMT

$639.00

Price: $555.70 - $639.00

Weight: 0.05 kg

Aptina MT9P006 5MP@14FPS Mini GIGE industrial camera with POE

Specification

Model	MEGS5M-14FC	MEGS5M-14FM(T)
Pixels	4.9MP Color	4.9MP Mono
Sensor	Aptina MT9P006	Aptina MT9P031
Exposure type	Electronic Rolling shutter
Scan	Progressive Scanning /Continuous Output
Sensor Size	Diagonal: 7.12mm ; 1/2.5” Diagonal: 6.56mm 1/2.7 CMOS
ADC Precision	12 Bit
Pixels Size	2.2um x2.2um
light-sensitive area	5.12mm*3.84mm
Resolution& Frame	Resolution	Frame Display Rate
	2592 x 1944(MAX)	14FPS 4: 3
	1296x 972(SUM)	14FPS 4: 3
	ANY ROI
SNR	38.5dB 38.4dB			38dB
Sensitivity	1.76V/Lux.S (Green Path)			1.4V/Lux.S
Dynamic Range	67dB			70dB
Spectrum Response	390nm ~ 650nm			390nm ~ 1050nm
Trigger Mode	Hardware /Software Trigger
Exposure time	36us~1.0s 31ms 976us
Gain	1x–8x, Length: 0.125x
Image Data	RAW8, RAW12, RAW12 Packed(RAM Image)
	BayerRG8, BayerRG12, BayerRG12 Packed		Mono8, Mono12, Mono12 Packed
Image Format	RAW, BMP, JPG, PNG
Dimension	29 mm x 29mm x 29.5mm(exclude lens mount)
Weight	<45g
Lens mount	C Mount
Executive Standard	CE, GenICam, GigE Vision, IP30, RoHS, IEEE 802.3af(PoE)
Power Consumption	≈2.2W @PoE supply ≈1.8W @12V DC supply			≈1.9W @PoE supply ≈1.5W @12V DC supply
