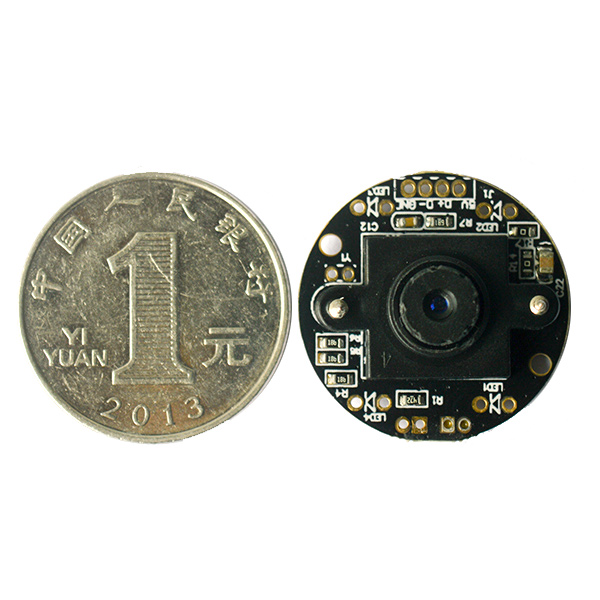

U3K52 1/4" 0.3MP 640X480 USB2.0 Camera board YUY2
U3K52 1/4" 0.3MP 640X480 USB2.0 Camera board YUY2
Catalog:
SKU: U3K52
Video Coding:
Resolution:
$15.70
Price: $12.60 - $15.70
Weight: 0.05 kg
Dimensions: 3.2 cm × 3.2 cm × 26 cm
| Product number | |||
| Sensor | OV2051 | ||
| MAX effective pixels | 640 * 480 | ||
| Sensor Size | 1/4" | ||
| Output parameters | video format | Rosolution | Max Frame rate |
| YUY2 | 640 * 480 (default) | 30fps | |
| Focusing | ffixed / Manual | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Exposure | ||
| White Balance | Automatic / Manual | ||
| Exposure Control | Automatic / Manual | ||
| Voltage | DC 5V | ||
| Electric current | 90mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 80°C | ||
| working temperature | -20°C to 70°C | ||
| Temperature(stable image) | 0°C to 50°C | ||
| USB Wire rod | Customized | ||
| Board Size | Diameter 25mm | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
| Lens | field view angle | 90° | |
| Construction | 5P+IR | ||
| Aperture | F2.8 | ||
| IR-Filter | 650±10nm | ||
