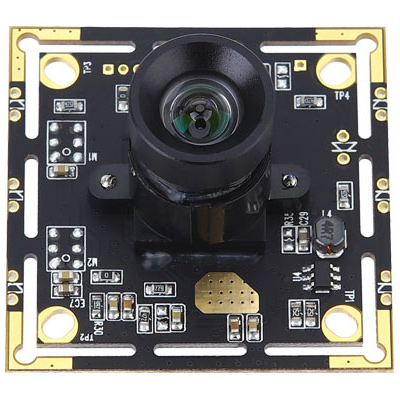

U2M2131Z 2MP 1/2.7" HM2131 USB 2.0 camera module UVC MJPG 30FPS PCBA YUY2
U2M2131Z 2MP 1/2.7" HM2131 USB 2.0 camera module UVC MJPG 30FPS PCBA YUY2
Catalog:
SKU: U2M2131Z
Sensor:
Resolution:
$34.50
Price: $26.50 - $34.50
Weight: 25 g

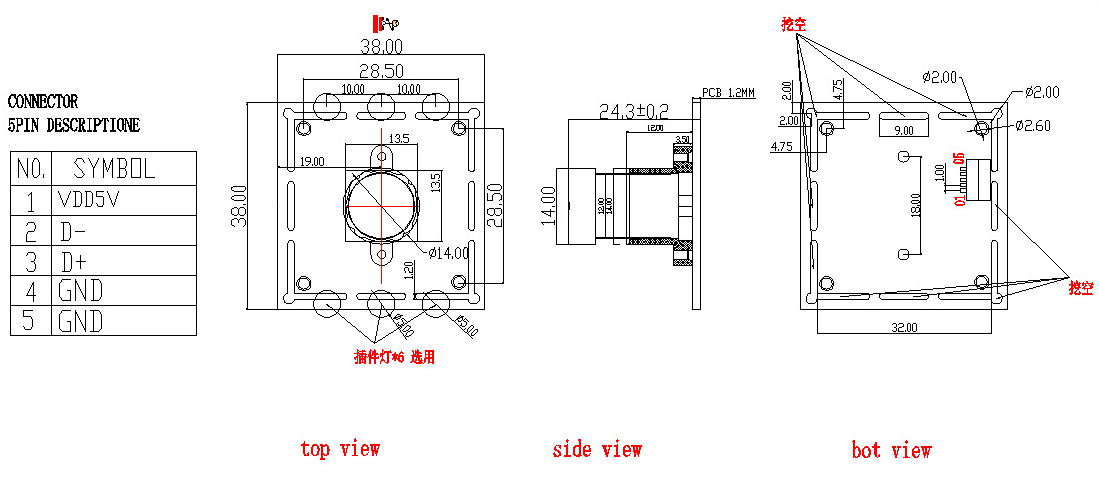

Dimensions: 38 mm × 38 mm × 50 mm
2MP 1080P USB2.0 camera with HM2131 Sensor
| Product number | |||
| Sensor | HiMax HM2131 | ||
| MAX effective pixels | 1920 * 1080 | ||
| Sensor Size | 1/2.7 inch | ||
| Pixel Size | 3μm x 3μm | ||
| Dark Current | 20mV/s @60°C | ||
| Sensitivity | 4600mV/(Lux-sec) | ||
| Output parameters | Video format | Rosolution | Max Frame rate |
| MJPG/YUY2 | 800x600 | 30fps | |
| MJPG/YUY2 | 720P 1280x720 | 30fps | |
| MJPG/YUY2 | 2MP 1920x1080 | 30fps | |
| focusing | Fixed / Manual | ||
| max S/N ratio | 38.9dB | ||
| dynamic range | 62dB | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Working Current | <200mA | ||
| Sleep mode Current | <10mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | 0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
| Lens | Lens Construction | 3G2P+IR | |
| F/NO | F2.5 | ||
| EFL | 4.16mm | ||
| BFL | 3.4mm | ||
| FOV | 80° | ||
| TV Distortion | <1.2% | ||
| Relative ilumination | 50% | ||
| IR Filter | 650±10nm | ||
