1/2.5" MT9P006 Color Industrial Inspection USB Laser Machine Camera
1/2.5" MT9P006 Color Industrial Inspection USB Laser Machine Camera
Aperture:
Sensor:
Mount Type:
Resolution:
1/2.5" MT9P006 Color Industrial Inspection USB Laser Machine Camera
Model | U2CV5M-7FC |
Sensor Model | MT9P006 |
Sensor Size | 1/2.5" CMOS Color |
Photosurface Size | 5.7mm(H)x4.28mm(V) |
Max Resolution | 2592×1944（5M） |
Resolution&FPS | 2592×1944：7FPS |
2048×1536（ROI）：10.4 FPS | |
1920×1080（ROI）：15.4FPS | |
1280×960（SUM2）：17.2 FPS | |
1280×960（BIN2）：17.2 FPS | |
640×480（SUM4）：26.7 FPS | |
640×480（BIN4）：26.7 FPS | |
ANY ROI | |
Pixel Size | 2.2μmx2.2μm |
Scan Type | Progressive Scan |
Shutter Type | Electronic Rolling Shutter |
Exposure Time | 0.072ms-3000 ms |
Data Format | 8bit RAW，24bit BMP |
Trigger Type | Software Trigger / Hardware Trigger |
Sensitivity | 1.76V/Lux-sec(550nm) |

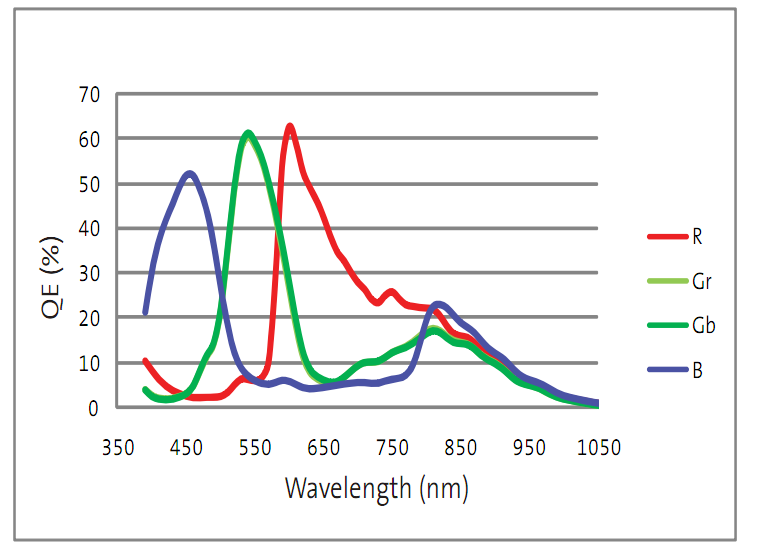

Spectral Range | 380nm-650nm(Filter Included) |
SNR | 38.5dB |
Wide Dynamic Range | 67.7dB |
Definition | >1200 Lines |
Exposure Mode | Auto/Manual/Area |
White Balance | Manual / One-Time / Area / Auto |
Firmware Update | Remote Update |
Camera ID | Users-Defined |
Image Format | RAW / BMP / JPG / PNG |
Image Processing | Image Size,Lightness,Exposure time;Gain;GAMMA;Contrast;Black Level;Sharpness;Noise Reduction;3D Noise Reduction；RGB Gain；Saturation |
System | Windows XP(32bit); Win7/8/8.1/10(32/64bit) （Better Win7 or Higher） |
Software Interface | TWAIN，DirectShow |

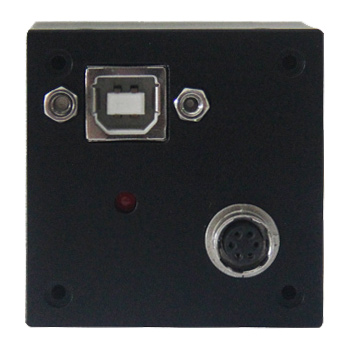

Interface | USB2.0 Type-B， 480Mb/s |
LED Guide | Power on during Stand-by ;Flashing during working |
Power | USB5V，Working:1W，Stand-by:0.45W |
Operating Conditions | Temperature：0℃ ~ 50℃； Humidity：10% - 90%RH（No Condensation） |
Storage Conditions | Temperature：-20℃ ~ 60℃； Humidity：10% - 60%RH |
Lens Mount | C/CS Mount |

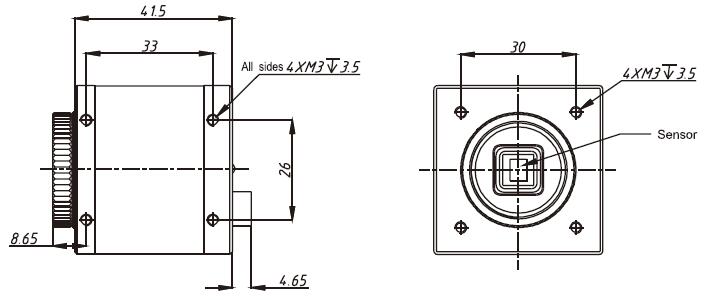

Size | 44x44x39mm（Exclude CS Thickness） |
Weight | Approx.114g |
INDUSTRIAL CAMERA U2CV SERIES:
Features:
High compatibility; More stable transmission.
TWAIN and DirectShow as software interface.
1.3MP~5MP 32MB On-Board digital camera
Unique design for microscopy applications.
Dustproof rubber cover can ensure sensor surfaceclean.
Parameters:
Applications:
CCD&CMOS Camera for Machine Vision Systems and Optical Solutions
Industrial Camera; Microscopy Camera; USB2.0 camera; USB3.0 Camera; GIGE VISION camera; VGA camera
