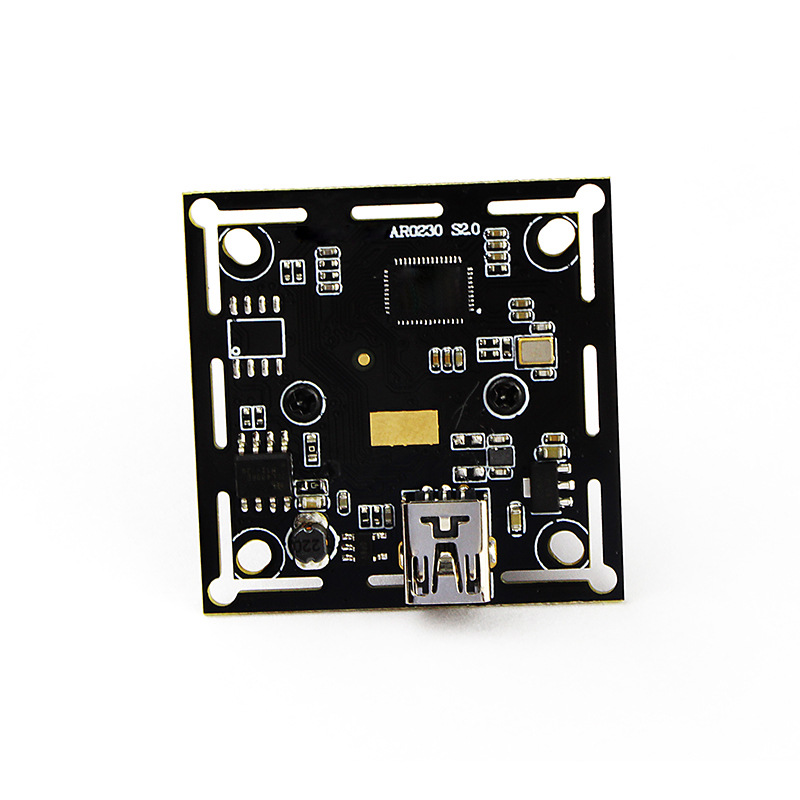

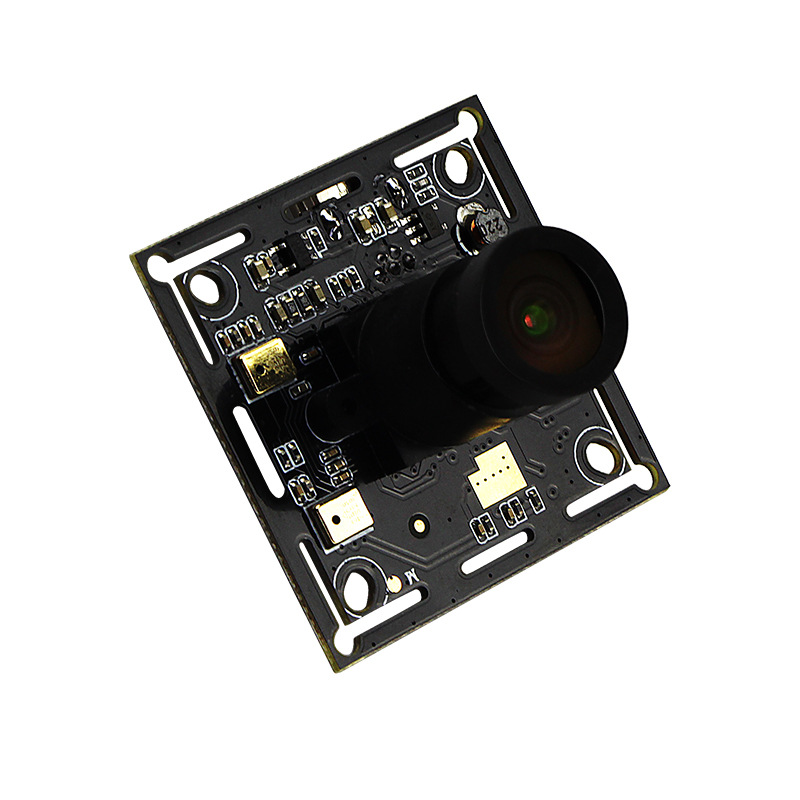

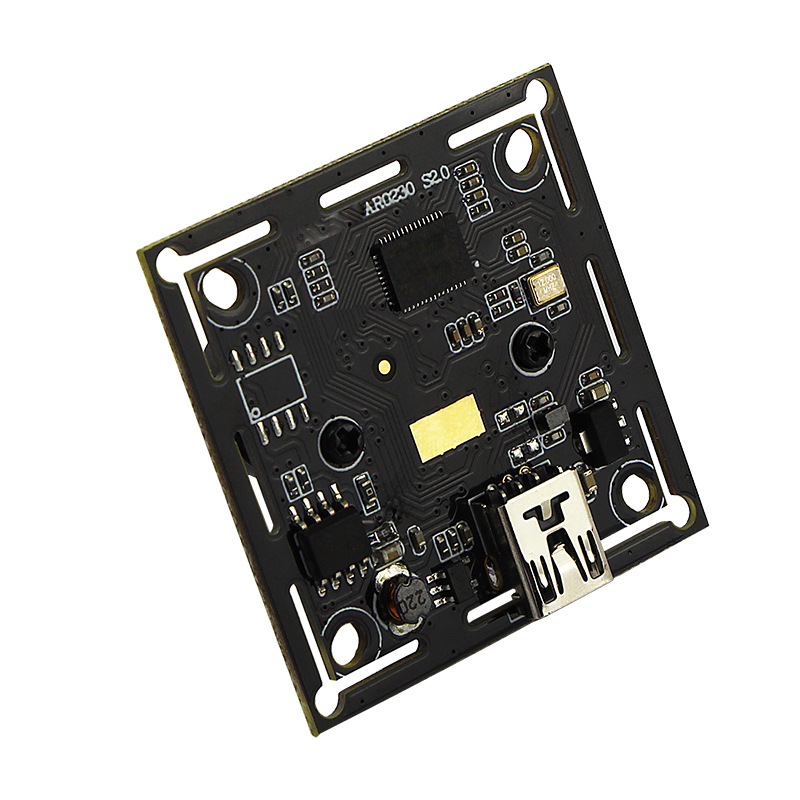

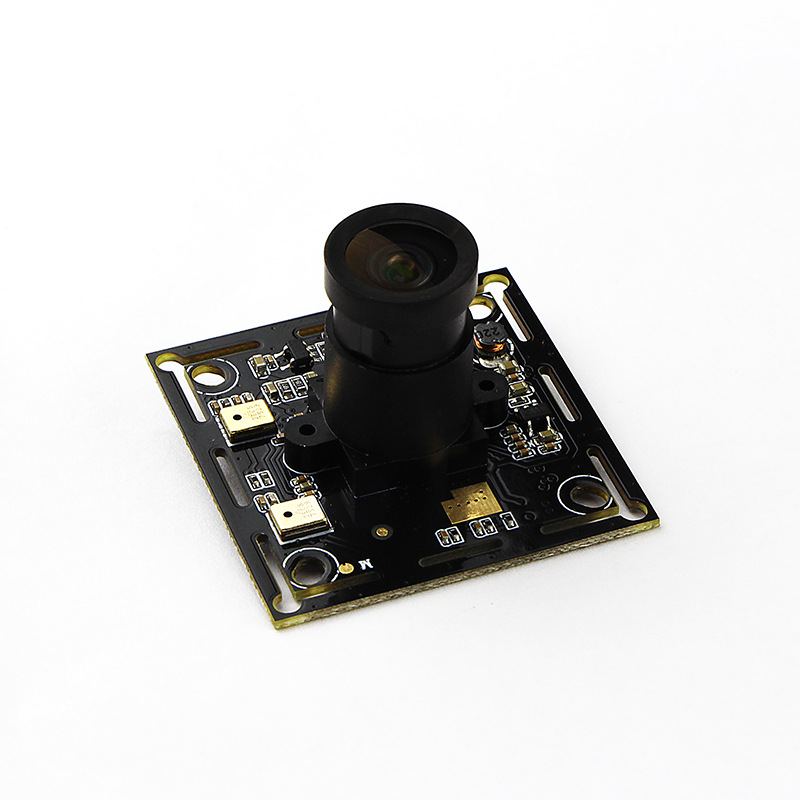

U2MR230 1/2.7" AR0230 2MP 1080P 30fps USB2.0 OTG UVC WDR Camera board YUY2 MJPEG
U2MR230 1/2.7" AR0230 2MP 1080P 30fps USB2.0 OTG UVC WDR Camera board YUY2 MJPEG
Catalog:
SKU: U2MR230S
Sensor:
Resolution:
$51.90
Price: $39.90 - $51.90
Weight: 0.015 kg
Dimensions: 3.8 cm × 3.8 cm × 0.9 cm
2MP 1080P HD USB camera module with 1/2.7" AR0230 Sensor
1/2.7" AR0230 CMOS Sensor, more stable
Using MJPEG, YUY2 encoding, has a very good indoor and outdoor effects, vivid colors
Support UVC protocol, no driver, plug and play.
Support USB2.0 OTG protocol, OTG access devices.
Support linux, Android and other embedded systems.
Support dual digital MIC, stereo capture quality excellence.
| Product number | |||
| Sensor | Aptina AR0230 | ||
| MAX effective pixels | 1920 * 1080 | ||
| Sensor Size | 1/2.7 inch | ||
| Pixel Size | 3.0μm x 3.0μm | ||
| Image area | / | ||
| Output parameters | video format | Max Rosolution | Max Frame rate |
| YUY2/MJPEG | 1080P | 30fps | |
| input clock frequency | 6-48MHz | ||
| focusing | Fixed | ||
| max S/N ratio | 41dB | ||
| WDR | 96dB | ||
| dark current | <10mA | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Electric current | 300mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 60°C | ||
| working temperature | 0°C to 55°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
