3MP 12FPS 1/2" 3.2um MT9T001 CMOS USB2.0 research grade Microscope camera
3MP 12FPS 1/2" 3.2um MT9T001 CMOS USB2.0 research grade Microscope camera
SKU: U2C3M-12FC
Aperture:
Sensor:
Mount Type:
Resolution:
$358.00
Price: $311.30 - $358.00
Weight: 0.3 kg
3MP 12FPS 1/2" 3.2um MT9T001 CMOS USB2.0 research grade Microscope camera
Model No | U2C3M-12FC |
SENSOR | MT9T001 |
SENSOR Size | 1/2" CMOS Color |
Efficient Pixel | 2048×1356(3M) |
Resolution and frame rate | 2048×1536: 12FPS |
1920×1080: 18FPS | |
1024*×768(ROI): 40FPS | |
640×480(ROI): 84FPS | |
Any ROI | |
Pixel Size | 3.2μm×3.2μm |
Scan Mode | Progressive Scan |
Shutter Type | Electronic Rolling Shutter |
Exposure Time | 47μs-3000ms |
Image data mode | 8bit Raw,24bit BMP |

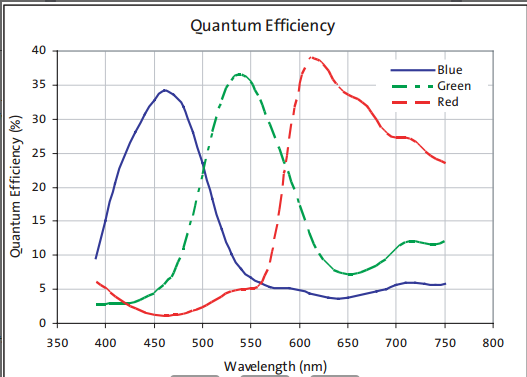

Spectral Range | 380nm-650nm(with IR-filter) |
Definition | >850 lines |
Exposure control | Manual/Auto/Area |
White Balance | Manual/one-time/Area |
Firmware Update | Support remote update |
Picture format | RAW, BMP, JPG, PNG |
Programable Control | Image size, Lightness, exposure time, gain, GAMMA, contrast, RGB gain, saturation, black level, sharpness, Noise Reduction,3D Noise Reduction. |
Operating System | Windows XP(32bit); Win7(32/64bit), Win8(32/64bit) |
Software Interface | TWAIN, DirectShow |
Data Interface | USB2.0 480Mb/s |
LED Guide | Power on during Stand-by; flashing during working |
Power (W) | Working: 1W, Standby: 0.7W |
Voltage(V) | USB5V(No external power supply circuit) |
Working Temperature | 0~50°C |
Storage Temperature | -20°C~60°C |
Working Humidity | 10%-90%RH(No condensation) |
Storage Humidity | 10%-60%RH |
Lense Mount | C Mount |
Size (mm) | 80×87.7×38mm |
Weight (g) | Approx 350g |
