High speed 0.36MP Mono 114FPS long transmission GIGE camera
High speed 0.36MP Mono 114FPS long transmission GIGE camera
Parameter
| Model No | GEM36-114FM |
| Pixels | 0.36MP(Mono) |
| Sensor | MT9V032 |
| Sensor Size | 1/3" |
| Photosurface Size | 4.51MM(H)*2.88MM(V) |
| Pixel Size | 6.0μm x 6.0μm |
| Resolution/Frame Rate | 752x 480(full resolution): 114FPS |
| 640x 480(ROI): 74FPS | |
| 320x 240(ROI): 142FPS | |
| Any Area (ROI) | |
| Shutter | Global Shutter |
| Exposure Time | 109μs ~ 300ms |
| Sensitivity | 4.8V/Lux-sec |
| Spectral Range | 380nm ~ 1000nm |
| SNR | 37.3dB |
| Dynamic Range | >55dB |
| Oprating Mode | Continuous Output/Software Trigger/Hardware Trigger |
| Scanning type | Progressive Scan |
| Exposure | Manual / Auto / Area |
| White Balance | Manual / One-Time / Auto / Area (only for color) |
| Image data format | 8bit/10bit RAW |
| Photo Format | JPEG / BMP / PNG / RAW |
| Built-in buffer | 32K bit |
| Product ID | User Defined |
| Data Interface | Gigabit Ethernet interface |
| Transmission Distance | 100 Meters |
| Software Interface | DirectShow /TWAIN |
| Operating System | Windows XP(32 bit) / Windows7(32 bit/64 bit) / Windows8(32 bit/64 bit) / Windows8.1(32 bit/64 bit)windows10(64bit) |
| Lens Mount | C/CS Mount |

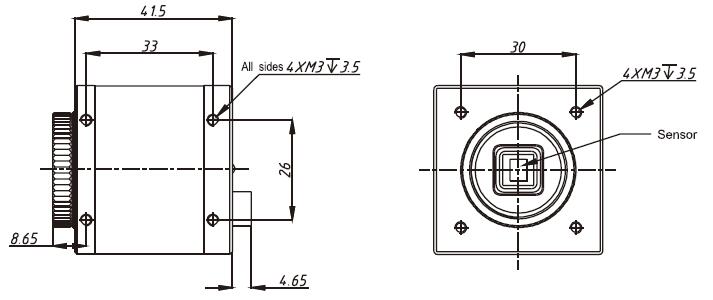

| Dimension (mm) | 44mm x 44mm x 39mm (Exclude lens mount) |
| Weight | Approx 121g |
| Rated Voltage (V) | 9~24V(Standard 12V Power Supply) |
| Rated power (W) | 2.5W |
| Temperature | Working: 0~45°C / Storage: -20°C~60°C |
| Humidity | Working : 10%~90%RH(No condensation) / Storage: 10%~60%RH |
| LED Pilot light | Lighting once plug / Flashing when working |
