U3GS1M3-210FC USB3.0 industrial camera module global exposure 1.3MP 210FPS high-speed industrial cameras
U3GS1M3-210FC USB3.0 industrial camera module global exposure 1.3MP 210FPS high-speed industrial cameras
Catalog:
Sensor:
Video Coding:
Resolution:
U3GS USB3.0 industrial camera module description:
U3GS USB3.0 industrial camera module, is a long-term stability
of the self-healing function USB3.0 industrial camera module. USB3.0
industrial camera during normal operation, if outside interference
cause abnormal camera work (including computer USB3.0 interface
disturbed abnormal), U3CG1210 USB3.0 industrial camera module can
detect abnormalities and automatically adjusts into normal operation
status. Because the camera
eliminates the abnormal crash, you need to go to the customer site
maintenance trouble restarting the device. You save a lot of substantial maintenance costs.

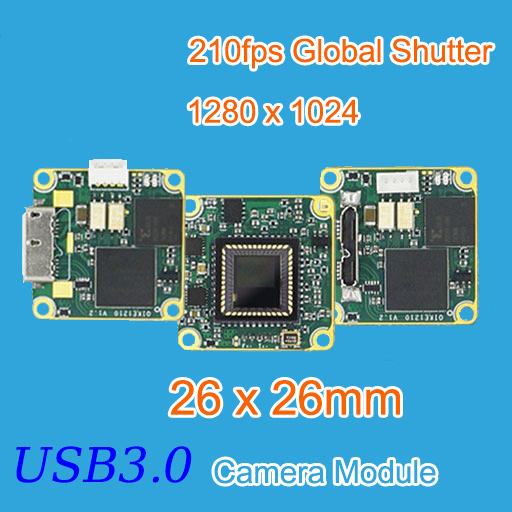

USB3.0 industrial camera industrial camera module as a
board module, to achieve the ultimate in size, only 26mm × 26mm size. In
such a small size, a pixel from 300,000 to 500 million pixels more
sensor module, the sensor comprising a high-speed shutter and global
exposure exposure. In the
circuit module using a special low-noise devices, image output cleaner,
more realistic, the image data processing easier.
USB3.0 industrial camera module features:
U3GS1M3-210FC industrial camera module parameters:
| Resolution | 1280 x 1024 |
| Sensor Model | ON PYTHON 1300 |
| sensor type | CMOS |
| Shutter Type | Global Exposure / Global Shutter |
| Pixel size | 4.8μm x 4.8μm |
| Size target surface | 1/2 inch |
| ADC bit depth | 10 bits |
| Dynamic Range | 60 dB |
| Signal to Noise Ratio | 40 dB |
| Frame rate | 210 fps |
| Data Format | Bayer8, Mono8, RGB, YUV |
| interface | USB 3.0 |
| Synchronize | Internal synchronization, external synchronization or software trigger |
| Exposure Control | AE, manual setting |
| White balance control | Automatic white balance, manual white balance, a balance key |
| Programmable control | Image
size, frame rate, exposure, white balance, mirroring, gain, noise
reduction, enhanced, brightness, contrast, saturation, gamma, camera ID,
camera name, etc. |
| support system | 32-bit or 64-bit Windows XP / 7/8/10 |
| Support the development of language | Dynamic library supports C, C ++, VB, C #, Labview and Matlab, etc., provide examples of VC source |
| input Output | An opto-isolated trigger input, a flash synchronization output isolation optocoupler |
| powered by | Powered by USB 3.0 interface |
| Power (typical) | 2.5W |
| size | 26 mm × 26mm |
| range of working temperature | -20 °C - 50 °C |
| Working humidity | 10% - 90% RH (non-condensing) |

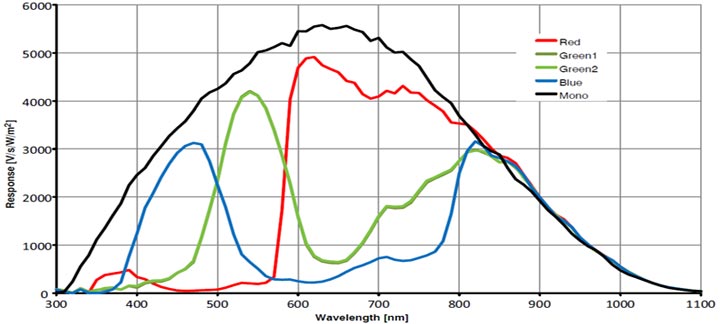

U3CG1210 industrial camera module spectral response curves:
U3CG1210 USB3.0 industrial camera module Mechanical dimensions:
