U1MN99141 1MP 720P 1/4" NT99141 USB 2.0 camera module UVC MJPG PCBA YUY2
U1MN99141 1MP 720P 1/4" NT99141 USB 2.0 camera module UVC MJPG PCBA YUY2
Catalog:
SKU: U1MN99141
Sensor:
Resolution:
$10.50
Price: $8.40 - $10.50
Weight: 0.025 kg
Dimensions: 38 mm × 38 mm × 50 mm

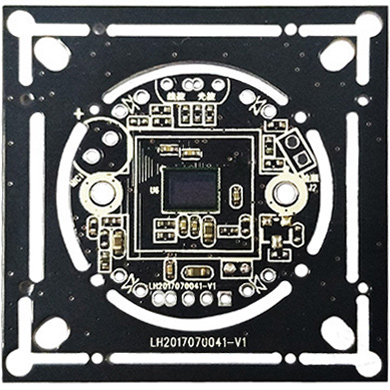

720P 1MP USB2.0 camera with NT99141 Sensor
| Product number | |||
| Sensor | NOVATEK NT99141 | ||
| MAX effective pixels | 1280 * 720 | ||
| Sensor Size | 1/4 inch | ||
| Pixel Size | 3.0μm x 3.0μm | ||
| Image Area | 3852μm x 2172μm | ||
| Output parameters | Video format | Rosolution | Max Frame rate |
| MJPG/YUY2 | 320x240 | 30fps | |
| MJPG/YUY2 | 640x480 | 30fps | |
| MJPG/YUY2 | 800x600 | 30fps | |
| MJPG/YUY2 | 720P 1280x720 | 30fps | |
| focusing | Fixed / Manual | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -30°C to 70°C | ||
| working temperature | 0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
38mm * 38mm / 32mm * 32mm / Diameter 25mm
