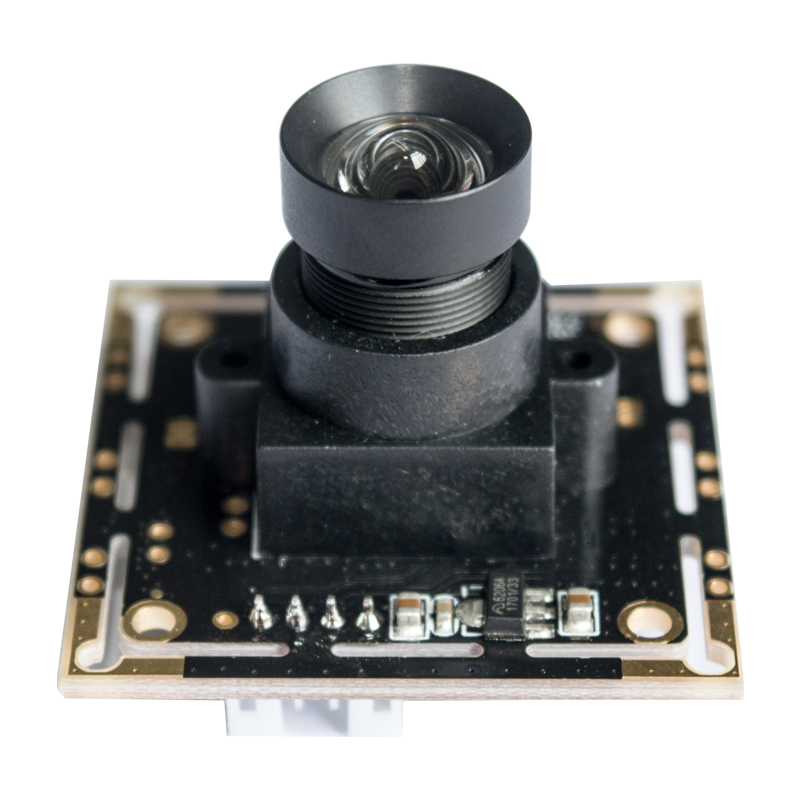

U1.3MR130K 1/3" 1.3MP AR0130 USB2.0 Camera board YUY2 MJPEG 10fps 30fps 38mm 32mm
U1.3MR130K 1/3" 1.3MP AR0130 USB2.0 Camera board YUY2 MJPEG 10fps 30fps 38mm 32mm
Catalog:
SKU: U1.3MR130K
Resolution:
$29.90
Price: $23.00 - $29.90
Weight: 0.015 kg

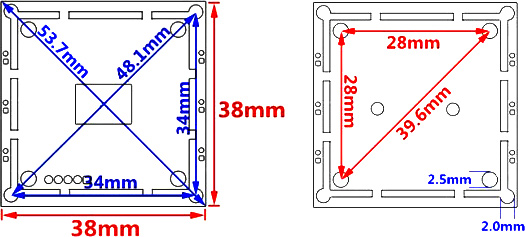

Dimensions: 3.8 cm × 3.8 cm × 0.9 cm
| Product number | |||
| Sensro | AR0130 | ||
| MAX effective pixels | 1280 * 960 1.3MP | ||
| Pixel Size | 3.75μm x 3.75μm | ||
| Sensor Size | 1/3" | ||
| Output parameters | Rosolution | MJPG | YUY2 |
| 160 x 120 | 30fps | 30fps | |
| 176 x 144 | 30fps | 30fps | |
| 320 x 240 | 30fps | 30fps | |
| 352 x 288 | 30fps | 30fps | |
| 640 x 480 | 30fps | 30fps | |
| 800 x 600 | 30fps | 20fps | |
| 1280 x 720 | 30fps | 9fps | |
| 1280 x 960 | 30fps | 9fps | |
| focusing | Fixed / Manual | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| White Balance | Automatic / Manual | ||
| Exposure Control | Automatic / Manual | ||
| Voltage | DC 5V | ||
| Power consumption | 70mW (VGA); | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | -0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
