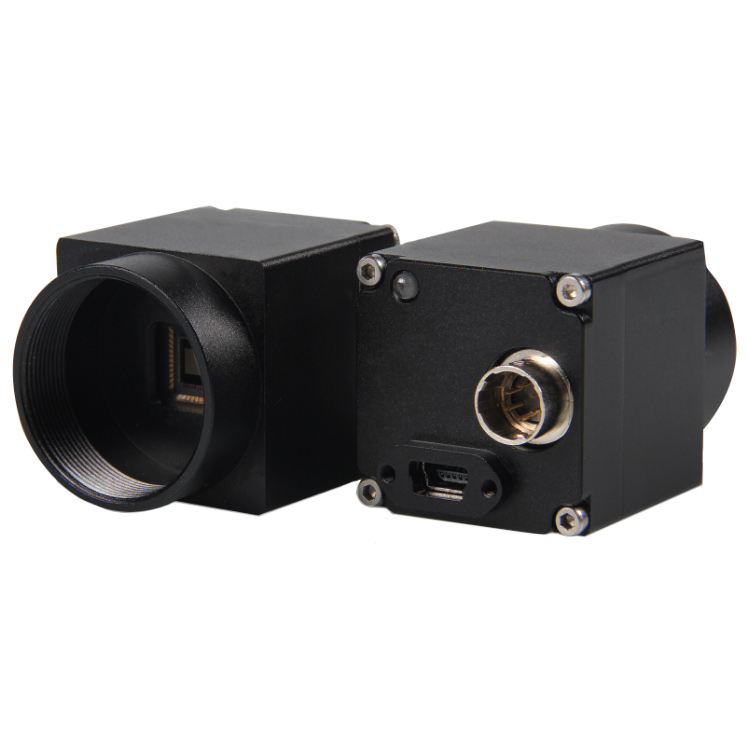

5MP@9fps USB2.0 Industrial Inspection Rolling Shutter Mono Mini 29x29 Camera

5MP@9fps USB2.0 Industrial Inspection Rolling Shutter Mono Mini 29x29 Camera

SKU: U2C5M-7FM

Aperture:

Sensor:

Mount Type:

Resolution:

$358.00
Price: $311.30 - $358.00
Weight: 0.3 kg

Industrial Inspection Rolling Shutter Mono 29x29 Camera

MINI INDUSTRIAL CAMERA SERIES:

Features:

  1. High compatibility;More stable transmission.

  2. TWAIN and DirectShow as software interface.

  3. 5MP High Speed B/W digital camera

  4. Unique design for microscopy applications.

  5. LabView OpenCV etc and VB, C++, C# Support

  6. Dustproof rubber cover can ensure sensor surfaceclean.

Parameters:

Mode

U2C5M-9FM

Sensor

Aptina:MT9P031I12STM

Sensor Size

1/2.5” CMOS (Mono)

Pixel Size

2.2*2.2um

Resolution&FPS

2592 × 1944(MAX)    9fps

1920 × 1080(ROI)      15fps

1280 x 960 (SUM2)         17fps
1280 x 960 (BIN2)           17fps

1024 × 768 (SUM2)    22fps

1280 × 720(BIN2)       30fps

Any ROI

Sensor Size

5.70mm × 4.28mm

Scanning Type

Progressive Scanning/ Continuous Output

Sensitivity

1.4V / lux-sec

Shutter

Electronic Rolling Shutter

Trigger Mode

Software Trigger / Hardware Trigger

Exposure Time

28us ~ 262ms

Gain

1- 4;Length:0.125

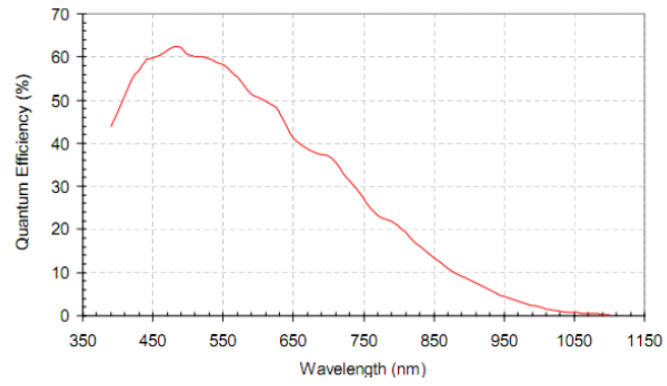

Spectral Range

380nm ~ 1050nm

Exposure mode

Auto / Manual / Area

Firmware Update

 Remote Update

Product ID

Yes

Image Format

RAW, BMP, JPG, PNG

PLC

Image size; Exposure time; Flicker Elimination; Gain; GAMMA; Contrast; Black level; Sharpness; 2D/3D Noise reduction

Indicator Light

On while power on&stand-by, Flashing while working

Power Supply

USB 5V Supply, Power Dissipation: <1.2W

Operating Conditions

Temperature: 0℃ ~ 50℃;
Humidity: 10% - 90%RH(non-condensing)

Storage conditions

Temperature: -20℃ ~ 60℃;
Humidity: 10% - 60%RH

Lens mount

C mount

Dimension

29mm x 29mmx 29mm(exclude lens mount)

Weight

38g

Note: More details can be sent by ur demands, datas above kindly be as reference only
