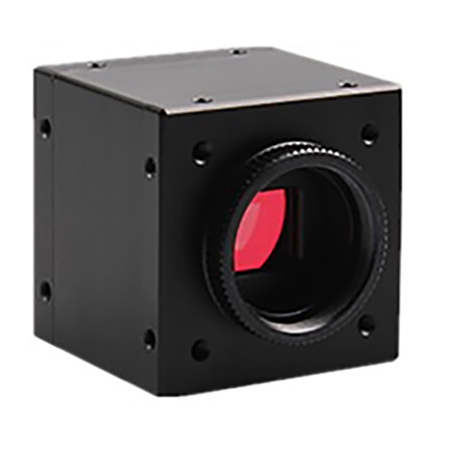

C Mount 5mp 2/3" Sony IMX264 Sensor USB3.0 Global Shutter Camera Hardware trigger
C Mount 5mp 2/3" Sony IMX264 Sensor USB3.0 Global Shutter Camera Hardware trigger
Aperture:
Sensor:
Mount Type:
Resolution:
C Mount 5mp 2/3 Sensor USB3.0 Global Shutter Camera
U3CH CAMERA SERIES:
Features:
Maximun 20 megapixels for your high resolution request.
USB3.0 High speed transmission. 40fps@full resolution
Low noise for darkness conditions
Multiple camera system support
Free driver, software, SDK, for your developing
Parameters:
| Model | U3CH5M-37FMT |
| Pixels | 5MP(Monochrome) |
| Sensor Size | 2/3" CMOS |
| Sensor Model | Sony IMX264 |
| Pixel Size | 3.45μm x 3.45μm |
| Max Resolution | 2448(H)x2048(V) |
| Frame rate | 37.5fps |
| BIN | 2x2 |
| ROI | Any ROI |
| Shutter | Global shutter |
| Exposure Time | 46μs ～ 10s |
| Spectral Range (nm) | 380nm~1050nm |
| Image data format | 8bit RAW / 12bit RAW |
| Working Mode | Continuous output/software trigger/hardware trigger |
| Software Interface | USB3.0 VisionV1.0 GENICAM/DirectShow/Twain |
| On-board buffer | 64MB |
| Exposure | Manual / Auto/ Area Exposure |
| White Balance | Manual/One-time/Automatic/Area (Only for color camera) |
| Image processing | Speed/Image size/ Exposure/ Gain/ GAMMA / Contrast/Black Level/ Sharpness/ 2D,3D Noise Reduction/（Saturation only for color camera） |
| User Memory | 32K bit |
| Product ID | user-defined |
| Systems | Windows XP (32bit) |
| Data Interface | USB3.0 Type-B |
| Transmission Distance | 5 meters |
| Trigger Port | 6PIN Connector (1*trigger input interface (Opto-couplers isolation), |
| Rated Power(W) | <2.0W |
| Working Temperature | 0~50℃ |
| Working Humidity | 10~90%RH( No condensation) |
| lens Mount | C / CS Mount |

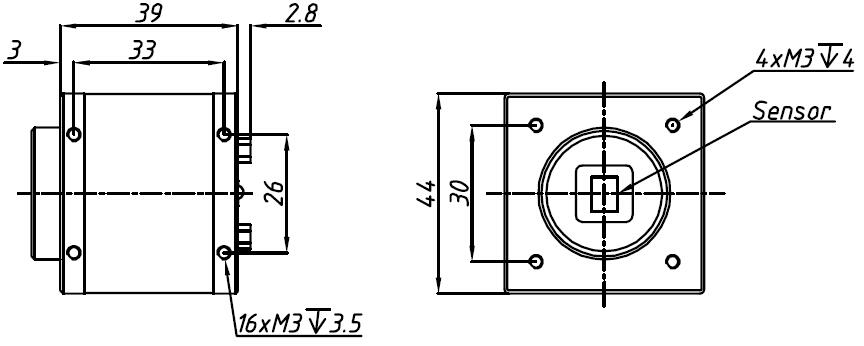

| Product Size (mm) | 44mm * 44mm * 39mm（Exclude lens extension ring） |
| Weight | Approx 140g |
Spectrum Response
Applications:
CCD&CMOS Camera for Machine Vision Systems and Optical Solutions
Industrial Camera; Microscopy Camera; USB2.0 camera; USB3.0 Camera; GIGE VISION camera; VGA camera
Trigger Cable: (for hardware trigger model)
| 1 | Red | VCC |
| 2 | Cyan | TRIG+ |
| 3 | White | TRIG- |
| 4 | Yellow | STROBE+ |
| 5 | Brown | STROBE- |
| 6 | Black | GND |
