5MP @7fps 1/2.5" Color CMOS C mount USB2.0 microscope camera
5MP @7fps 1/2.5" Color CMOS C mount USB2.0 microscope camera
Sensor:
5MP @7fps 1/2.5" Color CMOS C mount USB2.0 microscope camera
Features
l Transmission speed and stability are close to the cameras with built-i
l Color reproduction and image transparenceare excellent in various lighting environment;
l Unique dustproof rubber base ensure sensor surface be clean;
l Use software platform-----BasedCam II
parameter
Model | U2CE5M-7FC |
Sensor Model | MT9P006 |
Sensor Size | 1/2.5" CMOS Color |
Max Resolution | 2592×1944(5M) |
Resolution&FPS | 2592×1944: 7fps |
2048×1536(ROI): 10.4fps | |
1920×1080(ROI): 15.4fps | |
1280×960(SUM): 17.2fps | |
1280×960(BIN): 17.2fps | |
640×480(SUM): 26.7fps | |
640×480(BIN): 26.7fps | |
ANY ROI | |
Pixels Size | 2.2μm×2.2μm |
Scan Type | Progressive Scan |
Shutter Scan | Electronic Rolling Shutter |
Exposure Time | 0.059ms-3000 ms |
Data Format | 8bit Raw, 24bit BMP |
Sensitivity | 1.76V/Lux-sec(550nm) |
Spectral Response | 380nm-650nm(Filter Included) |
SNR | 38.5dB |
Wide Dynamic Range | 67.7dB |
Definition | >1200 Lines |
Exposure Mode | Auto/Manual/Area |
White Balance | Manual/One-Time/Area |
Firmware Update | Remote Update |
Camera ID | Users-Defined |
Image Format | RAW / BMP / JPG / PNG |
Image Processing | Image Size, Lightness, Exposure time;Gain;GAMMA;Contrast;Black level; Sharpness;Noise Reduction;3D Noise Reduction;RGB Gain;Saturation |
System | Windows XP(32bit); Win7/8/8.1/10(32/64bit) (Better Win7or higher) |
Software Interface | TWAIN, DirectShow |
Interface | USB2.0 Type-B,480Mb/s |
LED Guide | Power on during Stand-by ;Flashing during working |
Power | USB5V, Working: 1W, Stand-by0.45W |
Operating Conditions | Temperature: 0°C ~ 50°C;Humidity: 10% - 90%RH(No Condensation) |
Storage Conditions | Temperature: -20°C ~ 60°C; Humidity: 10% - 60%RH |
Lens Mount | C Mount |
Size | 80×87.7×38mm |
Weight | Approx.350g |
CE series USB2.0 CMOS Camera
Easy plug and play USB Interface camera
Made of aluminum alloy and 1/2.5" sensor

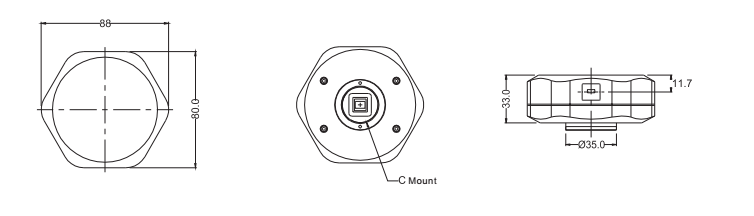

Product Dimension

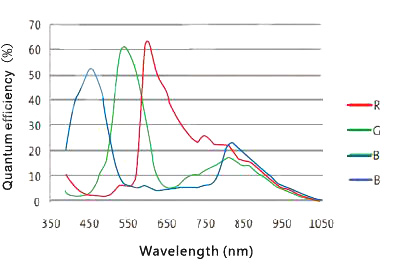

The spectral response curve
