U8MS179-AF 8MP 1/3.2" SONY IMX179 USB 2.0 Auto Focus camera module UVC MJPG PCBA YUY2
U8MS179-AF 8MP 1/3.2" SONY IMX179 USB 2.0 Auto Focus camera module UVC MJPG PCBA YUY2
Catalog:
SKU: U8MS179-AF
Sensor:
Resolution:
$36.50
Weight: 0.05 kg

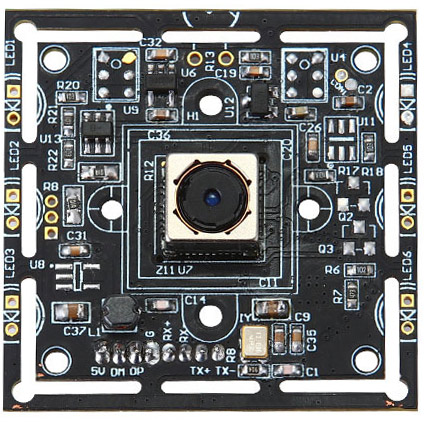

8MP USB2.0 camera with SONY IMX179 Sensor
| Product number | |||
| Sensor | Sony IMX179 | ||
| MAX effective pixels | 3264 * 2448 | ||
| Sensor Size | 1/3.2 inch | ||
| Pixel Size | 1.4μm x 1.4μm | ||
| Output parameters | Video format | Rosolution | Max Frame rate |
| MJPG/YUY2 | 640x480 | 30fps | |
| 800x600 | 30fps | ||
| 720P 1280x720 | 30fps | ||
| 2MP 1920x1080 | 30fps | ||
| 5MP 2592x1944 | 15fps | ||
| 8MP 3264x2448 | 15fps | ||
| focusing | AF | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Working Current | <200mA | ||
| Sleep mode Current | <20mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -30°C to 70°C | ||
| working temperature | 0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
| Lens | Lens Construction | 3G2P+IR | |
| F/NO | F2.5 | ||
| EFL | 4.16mm | ||
| BFL | 3.4mm | ||
| FOV | 80° | ||
| TV Distortion | <1.2% | ||
| Relative ilumination | 50% | ||
| IR Filter | 650±10nm | ||
