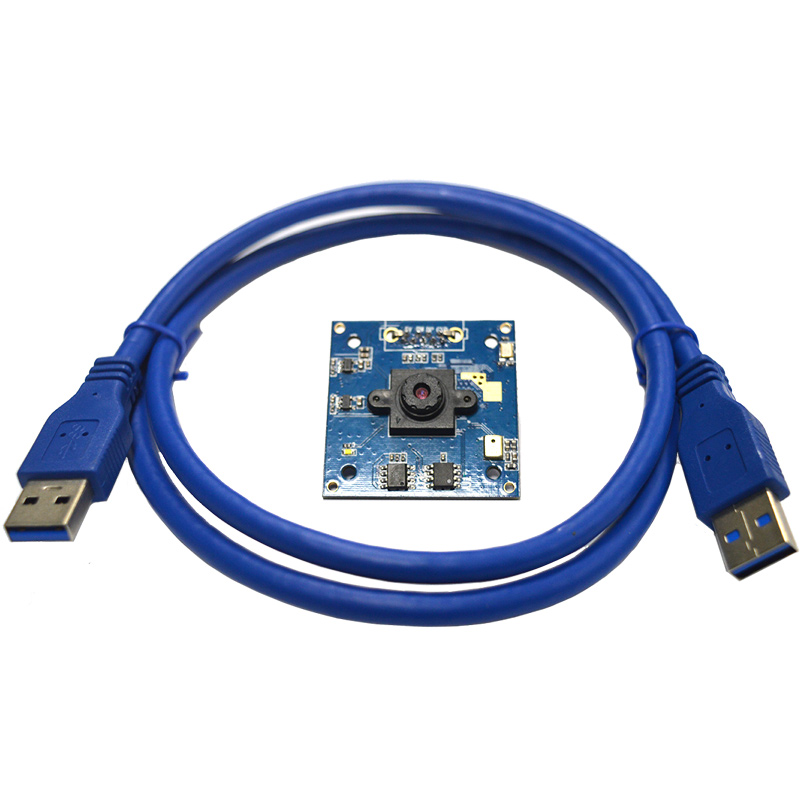

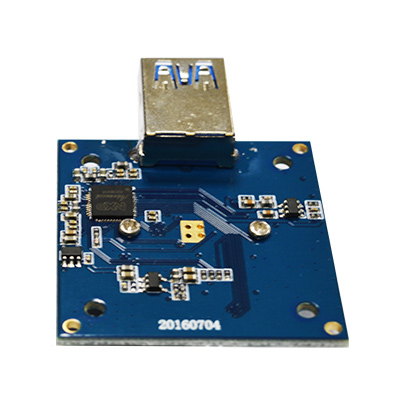

U8M179HH 1/3.2" 8MP IMX179 USB3.0 Camera board YUY2 MJPEG 15fps 30fps 38mm*38mm

U8M179HH 1/3.2" 8MP IMX179 USB3.0 Camera board YUY2 MJPEG 15fps 30fps 38mm*38mm

SKU: U8M179HH

Sensor:

Video Coding:

Resolution:

$75.90
Price: $63.30 - $75.90
Weight: 0.015 kg
Dimensions: 3.8 cm × 3.8 cm × 0.9 cm
Product number
SensroIMX179
MAX effective pixels3264 * 2448
Pixel Size1.4μm x 1.4μm
Sensor Size1/3.2"
Output parametersRosolutionMJPGYUY2
320 * 18030fps30fps
320 * 24030fps30fps
424 * 24030fps30fps
640 * 36030fps30fps
640 * 48030fps30fps
848 * 48030fps/
960 * 54030fps/
1280 * 72030fps/
1600 * 120030fps/
1920 * 108030fps/
2592 * 194415fps/
3264 * 2448
15fps/
focusingFixed / Manual
Interface typeUSB3.0
Adjustable parameterBrightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure
White BalanceAutomatic / Manual
Exposure ControlAutomatic / Manual
VoltageDC 5V
Electric current230mA
Main chipDSP/SENSOR/FLASH
AECSupport
AEBSupport
AGCSupport
PCBA SizeCustomized
Storage temperature-20°C to 70°C
working temperature-0°C to 50°C
USB Wire rodCustomized
System supportWinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
