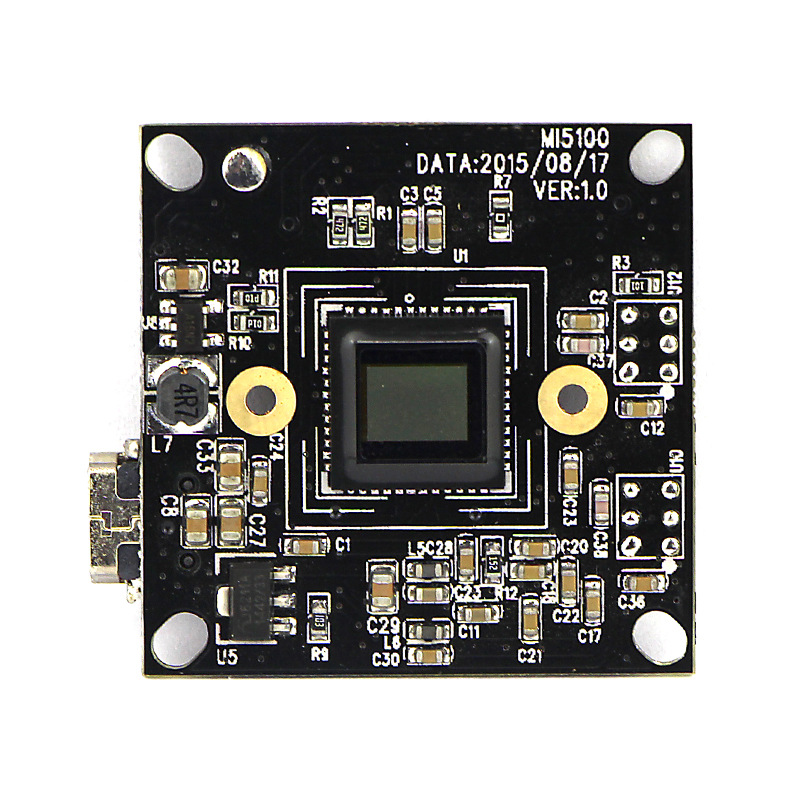

U5MM510 1/2.5" Micron MI5100 5MP USB2.0 Camera board YUY2 MJPEG
U5MM510 1/2.5" Micron MI5100 5MP USB2.0 Camera board YUY2 MJPEG
Catalog:
SKU: U5MM510
Sensor:
Resolution:
$36.00
Price: $27.70 - $36.00
Weight: 0.015 kg
Dimensions: 3.8 cm × 3.8 cm × 0.9 cm
| Product number | |||
| Sensor | Micron MI5100 | ||
| MAX effective pixels | 2592 * 1944 | ||
| Sensor Size | 1/2.5 inch | ||
| Pixel Size | 2.2μm x 2.2μm | ||
| Image area | 5.70mm(H) x 4.28mm(V) 7.13mm(D) | ||
| Output parameters | video format | Max Rosolution | Max Frame rate |
| YUY2/MJGP | 5MP | 25fps | |
| input clock frequency | / | ||
| focusing | Fixed | ||
| max S/N ratio | 38dB | ||
| dynamic range | 70dB | ||
| dark current | 1.4V/lux-sec (550nm) | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Electric current | 300mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | 0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
