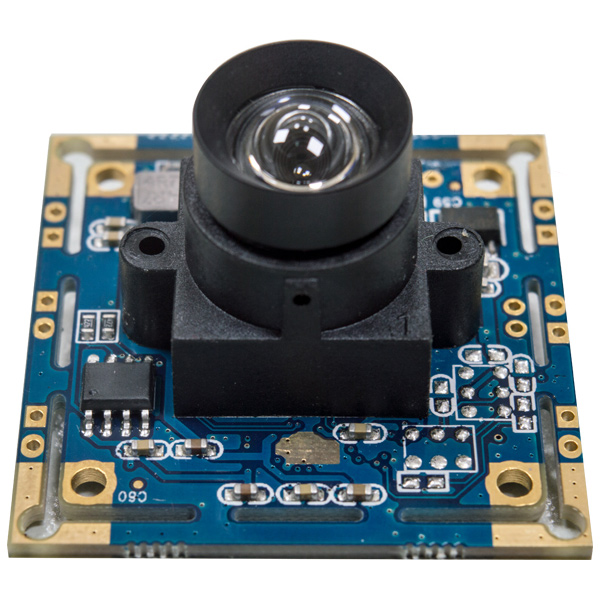

U2MS322K 1/2.9" 2MP Sony IMX322 H.264 USB2.0 Camera board YUY2 MJPEG 30fps 38mm 32mm
| Product number | ||||
| Sensro | Sony IMX322 | |||
| MAX effective pixels | 1920 * 1080 2MP | |||
| Pixel Size | 2.8μm x 2.8μm | |||
| Sensor Size | 1/2.9" | |||
| Output parameters | Rosolution | MJPG | H.264 | YUY2 |
| 320 x 240 | 30fps | 30fps | 30fps | |
| 352 x 288 | 30fps | 30fps | 30fps | |
| 640 x 360 | 30fps | 30fps | 30fps | |
| 640 x 480 | 30fps | 30fps | 30fps | |
| 800 x 600 | 30fps | 30fps | 15fps | |
| 1280 x 720 | 30fps | 30fps | / | |
| 1920 x 1080 | 30fps | 30fps | / | |
| focusing | Fixed / Manual | |||
| Interface type | USB2.0 | |||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | |||
| White Balance | Automatic / Manual | |||
| Exposure Control | Automatic / Manual | |||
| Voltage | DC 5V | |||
| Power consumption | 70mW (VGA); | |||
| Main chip | DSP/SENSOR/FLASH | |||
| AEC | Support | |||
| AEB | Support | |||
| AGC | Support | |||
| PCBA Size | Customized | |||
| Storage temperature | -20°C to 70°C | |||
| working temperature | -0°C to 50°C | |||
| USB Wire rod | Customized | |||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | |||
