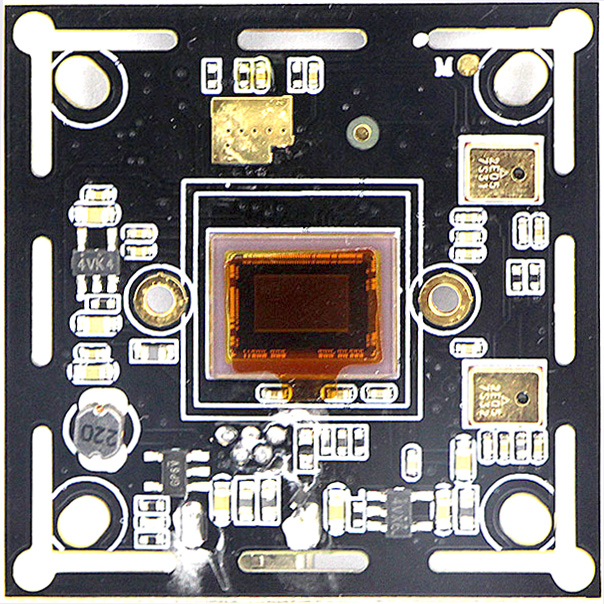

U2MS291 2MP 1/2.8" Sony IMX291 Starlight USB 2.0 camera module UVC MJPG PCBA YUY2
U2MS291 2MP 1/2.8" Sony IMX291 Starlight USB 2.0 camera module UVC MJPG PCBA YUY2
Catalog:
SKU: U2MS291
Sensor:
Resolution:
$49.80
Price: $38.30 - $49.80
Weight: 0.05 kg
U2MS291 2MP 1/2.8" Sony IMX291 Starlight USB 2.0 camera module UVC MJPG PCBA YUY2
| Product number | U2MS291 | ||
| Sensor | Sony IMX291 | ||
| MAX effective pixels | 1920 * 1080 | ||
| Sensor Size | 1/2.8 inch | ||
| Pixel Size | 2.9μm x 2.9μm | ||
| Sensitivity | 1300mV (1/30s accumulation) | ||
| Output parameters | Video format | Max Rosolution | Max Frame rate |
| MJPG/YUY2 | 640x480 | 30fps | |
| MJPG/YUY2 | 800x600 | 30fps | |
| MJPG/YUY2 | 720P 1280x720 | 30fps | |
| MJPG/YUY2 | 1080P 1920x1080 | 30fps | |
| focusing | Fixed / Manual | ||
| S/N ratio | >46dB | ||
| WDR | 100dB | ||
| Min illumination | Color: 0.001Lux@F1.2; | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Working Current | 300mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | 38mm * 38mm / 32mm * 32mm / Customized | ||
| Storage temperature | -30°C to 70°C | ||
| working temperature | 0°C to 55°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
