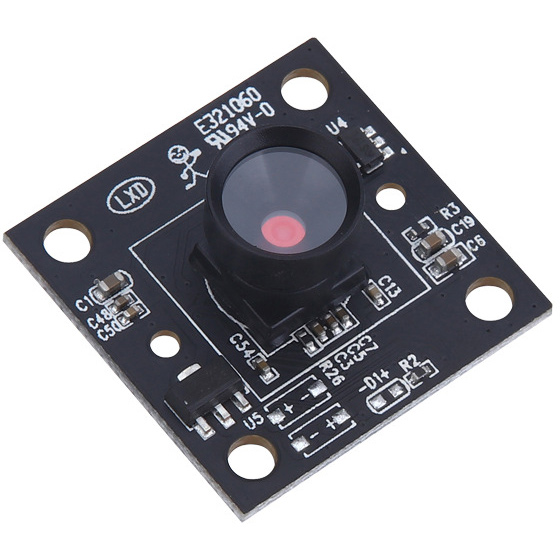

U1MH42Z 1MP 1/3.6" H42 USB 2.0 camera module UVC MJPG PCBA YUY2
U1MH42Z 1MP 1/3.6" H42 USB 2.0 camera module UVC MJPG PCBA YUY2
Catalog:
SKU: U1MH42Z
Sensor:
Resolution:
$15.60
Price: $12.50 - $15.60
Weight: 25 g

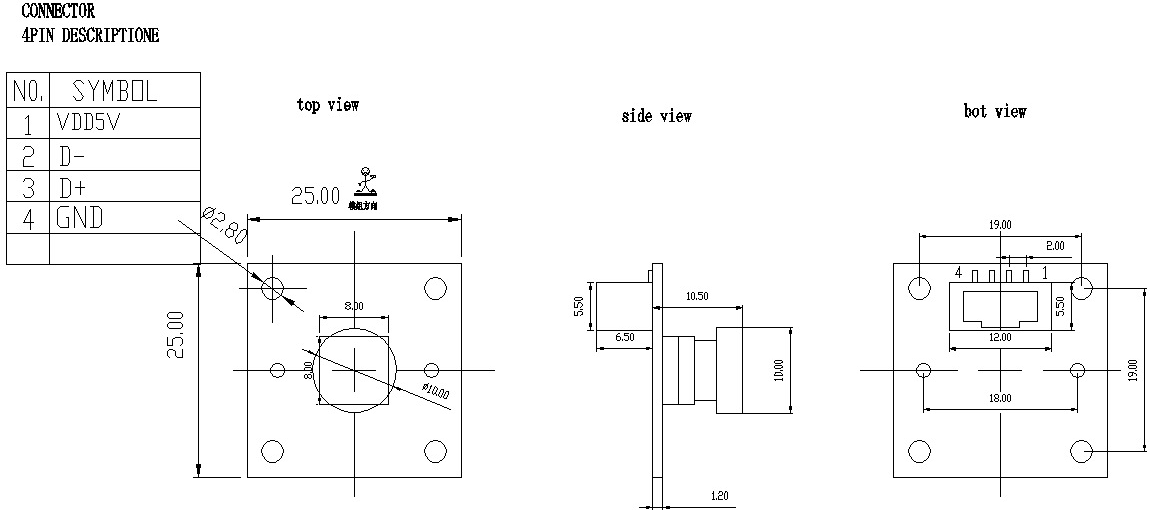

Dimensions: 25 mm × 25 mm × 12.3 mm
1MP USB2.0 camera with H42 Sensor
| Product number | |||
| Sensor | H42 | ||
| MAX effective pixels | 1280 * 720 | ||
| Sensor Size | 1/3.6 inch | ||
| Pixel Size | 3μm x 3μm | ||
| Sensitivity | 3300mV/(Lux-sec) | ||
| Output parameters | Video format | Rosolution | Max Frame rate |
| MJPG/YUY2 | 640x480 | 30fps | |
| MJPG/YUY2 | 800x600 | 30fps | |
| MJPG/YUY2 | 720P 1280x720 | 30fps | |
| focusing | Fixed / Manual | ||
| max S/N ratio | 37dB | ||
| Dynamic Range | 64dB | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Working Current | <150mA | ||
| Sleep mode Current | <10mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -30°C to 70°C | ||
| working temperature | 0°C to 50°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
| Lens | Lens Construction | 4P+IR | |
| F/NO | F2.5 | ||
| EFL | 4mm | ||
| BFL | 2.8mm | ||
| FOV | 70° | ||
| TV Distortion | <5% | ||
| Relative ilumination | 50% | ||
| IR Filter | 650±10nm | ||
