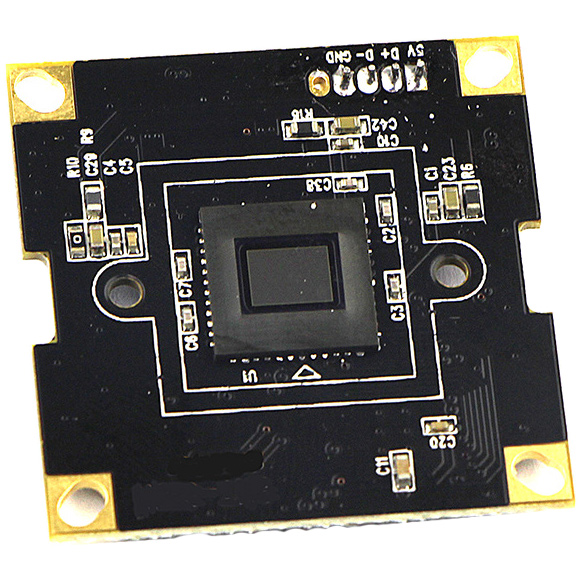

U1M3R130C 1/3" 1.3MP AR0130 USB2.0 WDR Camera board YUY2 MJPEG 30fps
U1M3R130C 1/3" 1.3MP AR0130 USB2.0 WDR Camera board YUY2 MJPEG 30fps
Catalog:
SKU: U1M3R130C
Sensor:
Resolution:
$29.90
Price: $23.00 - $29.90
Weight: 0.05 kg
Dimensions: 38 mm × 38 mm × 9 mm
| Product number | U1M3R130C | ||
| Sensro | Aptina AR0130 | ||
| MAX effective pixels | 1280 * 960 1.3MP | ||
| Pixel Size | 3.75μm x 3.75μm | ||
| Sensor Size | 1/3" | ||
| Output parameters | Rosolution | MJPG | YUY2 |
| 160 x 120 | 30fps | 30fps | |
| 176 x 144 | 30fps | 30fps | |
| 320 x 240 | 30fps | 30fps | |
| 352 x 288 | 30fps | 30fps | |
| 640 x 480 | 30fps | 30fps | |
| 800 x 600 | 30fps | 20fps | |
| 1280 x 720 | 30fps | 9fps | |
| 1280 x 960 | 30fps | 9fps | |
| focusing | Fixed / Manual | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| White Balance | Automatic / Manual | ||
| Exposure Control | Automatic / Manual | ||
| Voltage | DC 5V | ||
| Max S/N ratio | 44dB | ||
| Dynamic Range | 83.5dB | ||
| Dark Current | <10mA | ||
| Power consumption | 220mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | -0°C to 55°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
| Lens | Lens Size | 1/3" | |
| TTL | 14.5mm | ||
| Lens Structure | 5G+IR | ||
| FOV | 128° | ||
| Thread Size | M12*P0.5 | ||
