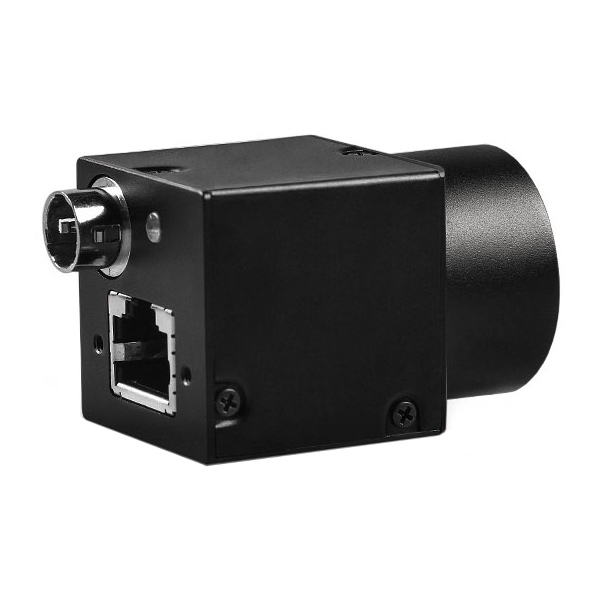

Traffic security camera 2MP Global shutter 52FPS GIGE camera
Traffic security camera 2MP Global shutter 52FPS GIGE camera
SKU: GE2MGS-52FC
Aperture:
Sensor:
Resolution:
$949.00
Price: $825.20 - $949.00
Weight: 0.3 kg
Traffic security camera 2MP Global shutter 52FPS GIGE camera
Parameter
| Model No | GE2MGS-52FC |
| Pixel | 2MP (Color) |
| Sensor | EV76C570 |
| Sensor Size | 1/1.8" |
| Pixel Size | 4.5μm * 4.5μm |
| Frame rate | 1600x1200 @ 52FPS |
| Shutter | Global Shutter |
| Exposure Time | 2μs ~ 200ms |
| Sensitivity | - |
| Spectral Range (nm) | 380nm ~ 650nm (with infrared filter) |
| SNR | 39dB |
| Dynamic Range | 52dB |
| Working Mode | Continous output/Software Trigger/Hardware Trigger |
| Scan type | Progressive Scan |
| White Balance Function | Manual/One-time/Automatic/Area |
| Image processing | Work Speed/Image Brightness/Exposure/RGB Gain/gamma/Contrast/Saturation/Black Balance/Sharpness/2D,3D Noise Reduction |
| Image data format | 8bit/12bit RAW |
| User Memory Space | 32K bit |
| Product ID | User Defined |
| Software Interface | GIGE Vision V1.2/GENICAM/DirectShow/TWAIN |
| Systems | Windows XP (32bit); Windows 7 (32bit/64bit); Windows 8 (32bit/64bit); Windows 8.1 (32bit/64bit)/Windows10(64bit) |
| Data Interface | GIGE VISION |
| lense Mount | C / CS Mount |
| Product Size (mm) | 44mm * 44mm * 42mm(Exclude lense interface) |
| Module Size (mm) | 39mm*39mm |
| Rated Voltage(V) | 9~24V(Standard 12V Power Supply) |
| Rated Power(W) | ≤2.5W |
| Weight | Approx 150g |
| Temperature | 0~50°C |
| Humidity | Working: 10%~90%RH(No condensation) / |
Built-in 32 MB buffer ensure image transmission more stable and faster
Plug and play interface
