SU3CG2M-180F USB3.0 industrial camera module global shutter 2MP 180FPS high-speed industrial camera recorder

SU3CG2M-180F USB3.0 industrial camera module global shutter 2MP 180FPS high-speed industrial camera recorder

SKU: SU3CG2M-180F

Video Coding:

Resolution:

$1,999.00
Price: $1738.30 - $1999.00
Weight: 0.15 kg

SU3CG2M USB3.0 high-speed industrial camera introduction:
SU3CG2M USB3.0 high-speed industrial cameras, is a can be applied in industrial applications of non-destructive image port USB3.0 high-speed transmission over high-speed camera. Using a high speed camera port USB3.0 speed transmission capability, when the 640 × 480 VGA resolution, can reach transmission speed 1100FPS.
A camera plus a laptop can be composed of a high-speed video systems, high-speed image acquisition and analysis can be achieved with a very low investment. And take advantage of high-speed solid-state hard drive capacity big advantage, high-speed video compression is not a long time. Video not only supports a single video, and also supports long automatic cycle recording, automatically overwrite the oldest files to facilitate real-time recording status line at high speed.
 Supporting high-speed video software can not only high-speed real-time acquisition of image data stored in the computer, can also be collected image data, slow-motion playback, the video data can also be converted into common video files such as avi or converted to one by one the bmp picture.

SU3CG2M USB3.0 high-speed industrial cameras, contains the following four models:
SU3CG2M-180F USB3.0 high speed is a high performance industrial color camera, 1920 × 1080 resolution, 180 images per second.
SU3CG1M-400F USB3.0 high speed is a high performance industrial color camera, 1280 × 720 resolution, 400 images per second.
SU3CGM5-750F USB3.0 high speed is a high performance industrial color camera, 800 × 600 resolution, 750 images per second.
SU3CGM3-1100F USB3.0 high speed is a high performance industrial color camera, 640 × 480 resolution, 1100 images per second.
  High-resolution camera can also open the window to get a low-resolution image, the frame rate can be improved, such as SU3CG2M-180F camera can get the effect SU3CGM3-1100F camera through the window of the way.
  The camera also provides high-speed version of the black and white image, but by the suffix CG models become MG, the same price. If you need an infrared-enhanced friends, please contact our customer service.

SU3CG Series USB3.0 high-speed industrial camera features:
  • small volume, only 29mm × 29mm × 30mm
  • VGA to 2 megapixel
  • up to 1100 / s
  • USB3.0 port, plug and play
  • opto-isolated external trigger and external synchronization, remote control video
  • provide acquisition software, support parameters, video, slow motion, avi video converter and bmp picture conversion functions
  • 32-bit and 64-bit Windows system, comprising WinXP / 7/8/10 system
  • dll dynamic libraries provide secondary development, it can be called a variety of programming languages, provide VC source code examples.
  • Single wire solutions, USB 3.0 while completing data transmission and power supply
  • Support firmware upgrade online
  • applicable C-mount CS-mount lenses


SU3CG2M-180F high-speed industrial camera parameters:
Resolution1920 x 1080 (Full HD resolution)
Image size2/3 inch
Frame rate180 fps @ 1920x1080
Window Frame Rate512x512@1300fps, 1920x16@5000fps
Storage rate≤480MBbyts/s
interfaceUSB 3.0
SynchronizeInternal synchronization, external synchronization
Shutter TypeGlobal Exposure
Exposure ControlAE, manual setting
White balance controlAutomatic white balance, manual white balance, a balance key
Programmable controlImage size, frame rate, exposure, white balance, mirroring, gain, brightness, contrast, saturation, gamma, camera ID, camera name, etc.
Software FeaturesParameter settings, recording, playback, format conversion, etc.
support system32-bit or 64-bit Windows XP / 7/8/10
Secondary development supportDynamic library supports C, C ++, VB, C #, Labview and Matlab, etc., provide examples of VC source
input OutputAn opto-isolated trigger input, a flash synchronization output isolation optocoupler
power supplyVia USB 3.0 port
Power (typical)3.5W
Lens MountC / CS mount
size29mm × 29mm × 30mm
range of working temperature-20 °C - 50 °C
Working humidity10% - 90% RH (non-condensing)

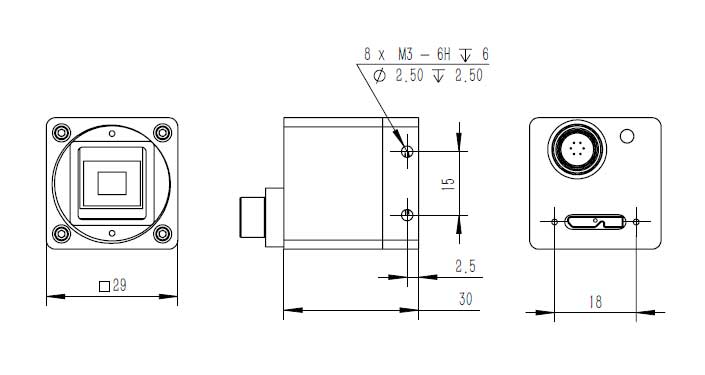

SU3CG Series USB3.0 high-speed industrial camera Mechanical:


SU3CG2M-180F delivery list:
1, SU3CG2M-180F high-speed camera  x1pc
2, USB3.0 line x1pc
3, trigger wire x1pc
