Mini Mono 1.3MP @213FPS support Linux USB3.0 Global Shutter Industrial camera
Mini Mono 1.3MP @213FPS support Linux USB3.0 Global Shutter Industrial camera
Catalog:
SKU: U31M3GS-213FM
Aperture:
Sensor:
Mount Type:
Resolution:
$350.00
Weight: 0.5 kg
Mini Mono 1.3MP @213FPS support Linux USB3.0 Global Shutter Industrial camera
parameter
| Mode | U31M3GS-213FM |
| Sensor | SmartSens: SC130GS, 1/2.7" Mono CMOS,4.0um |
| Resolution&FPS | 1280 × 1024 (MAX) 213fps |
| 640 × 512 (ROI) 213fps | |
| 640 × 512 (ROI) 213fps | |
| 320 × 240 (QVGA) 844fps | |
| ANY ROI | |
| Pixel Size | 5.12mm × 4.1mm |
| Scanning Type | Progressive Scanning / Continuous Output |
| Sensitivity | 8V / Lux-sec |
| Shutter | Global Shutter |
| SNR | 38.4db |
| Dynamic Range | 58db |
| Trigger Mode | Software/hardware Trigger |
| Exposure Time | 8us ~ 146ms834us |
| Gain | 1x – 3x; Step: 0.125x |
| Spectral Response | 380nm ~ 1050nm |
| Exposure Mode | Auto / Manual / Area |
| Firmware Update | Remote Update |
| Product ID | Yes |
| Output Image Format | RAW8, RAW12, RAW12 Packed; MONO8, MONO12, MONO12 Packed |
Snapshot Image Format | RAW, BMP, JPG, PNG |
PLC | Image size; Exposure time; Gain; GAMMA; Flicker Elimination; Contrast; Black level; Sharpness; 2D/3D Noise reduction |
| Power Supply | USB 5V Supply, <2W |
| Operating Conditions | Temperature: 0°C ~ 50°C;Humidity: 10% - 90%RH(non-condensing) |
| Storage conditions | Temperature: -20°C ~ 60°C; Humidity: 10% - 60%RH |
| Lens mount | C Mount |
| Dimension | 29 mm x 29mm x 29mm(exclude lens mount) |
| Weight | 45g |

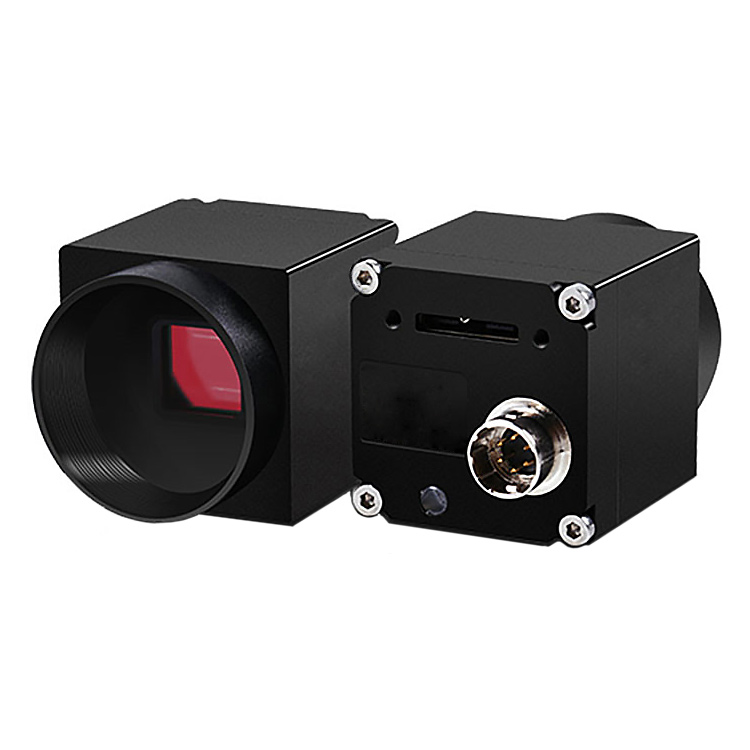

USB3.0 CMOS camera
Produce Size: 29*29*29 mm

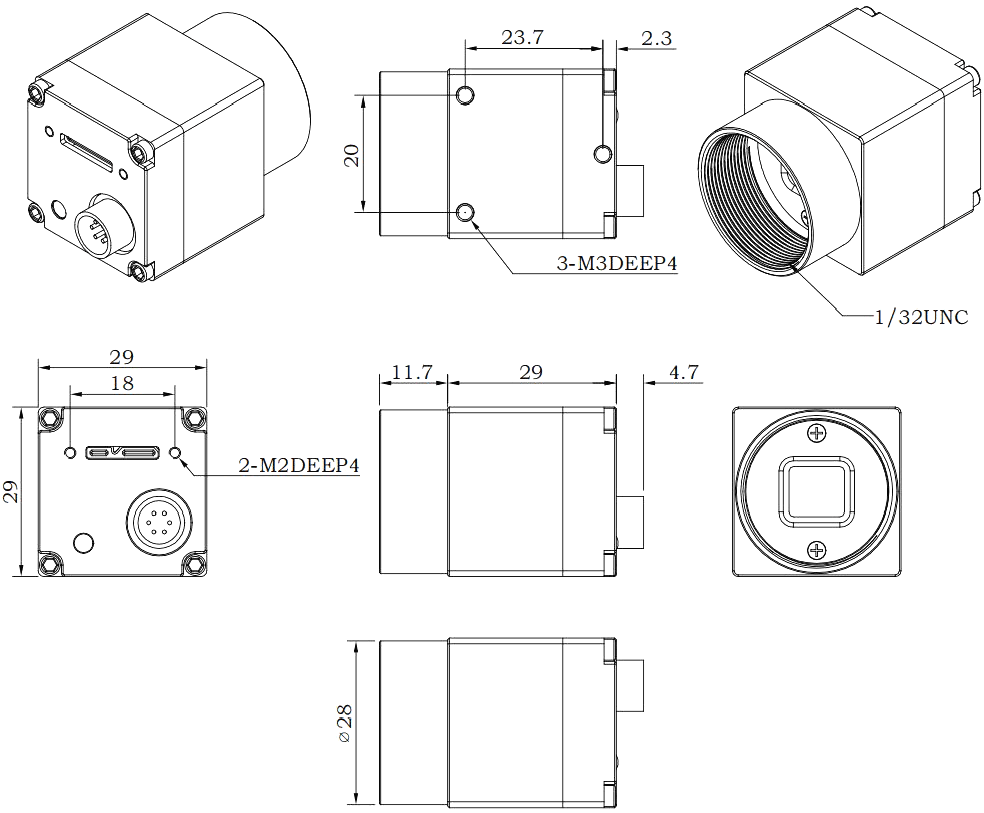

Product Dimension

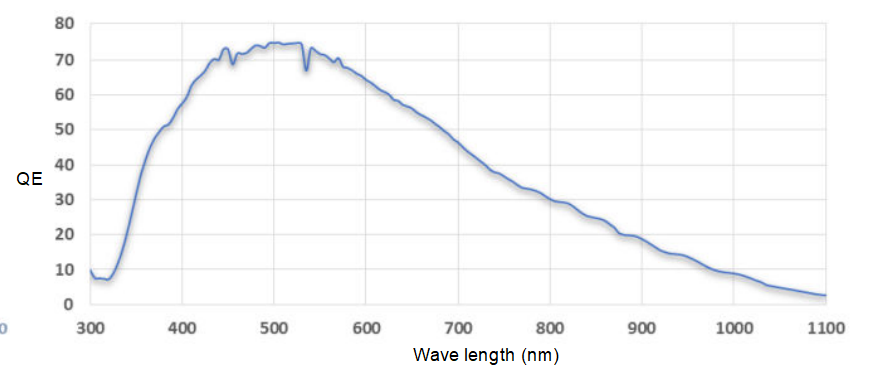

The spectral response curve
