MT9T001 3MP Color 1/2" USB2.0 CMOS industrail camera
MT9T001 3MP Color 1/2" USB2.0 CMOS industrail camera
SKU: U2CV3M-12FC
Aperture:
Sensor:
Resolution:
$359.00
Price: $312.20 - $359.00
Weight: 0.3 kg
MT9T001 3MP Color 1/2" USB2.0 CMOS industrail camera
parameter
| Model | U2CV3M-12FC |
| Pixels | 3.0 MP(Color) |
| Sensor Model | MT9T001 |
| Sensor Size | 1/2" |
| Photosuface size | 6.55mm(H)x4.92mm(V) |
| Pixel Size | 3.2μm x 3.2μm |
| Resolution/ Frame Rate | 2048 x 1536(Full resolution): 12FPS |
| 1920x 1080(ROI): 18FPS | |
| 1024x 768(ROI): 40FPS | |
| Any Area(ROI) | |
| Shutter | Electronic Rolling Shutter |
| Exposure Time | 47μs ~ 3s |
| Sensitivity | >1.0V/Lux-sec(550nm) |
| Spectral Response | 380nm ~ 650nm(with infrared filter) |
| SNR | 43dB |
| Dynamic Range | 61dB |
| Operating Mode | continuous output / software trigger |
| Scanning Mode | Progressive Scan |
| Exposure Control | Manual / Auto / Area |
| White Balance | Manual / One-Time / Auto /Area(only for color camera) |
| Image Data Format | 8bit RAW,24bit BMP |
| Picture Format | JPEG / BMP / PNG / RAW |
| Built-in Buffer | 32MB |
| Product ID | User Defined |
| Software Interface | DirectShow / TWAIN |
| Operating System | Windows XP(32 bit) / Windows7(32 bit/64 bit) / Windows8(32 bit/64 bit)/Windows8.1(32 bit/64 bit) |
| Data Interface | USB2.0 (B Type interface) |
| Lens Mount | C/ CS Mount |
| Dimension (mm) | 44mm x 44mm x 39mm (Exclude extension ring) |
| Weight | Approx. 114g |
| Rotated Voltage (V) | USB5V Power Supply(No external power supply circuit) |
| Rated power (W) | 1W |
| Temperature | Operation : 0~50°C / Storage: -20°C~60°C |
| Humidity | Working : 10%~90%RH(No condensation) / Storage: 10%~60%RH |
| LED Pilot Light | Lighting once plug/ flashing when working |

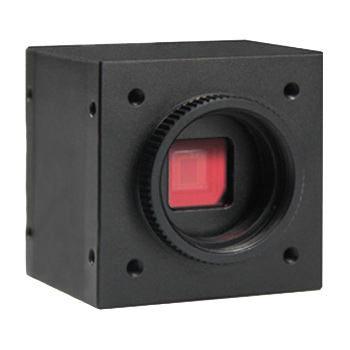

CFM series USB2.0 CMOS camera
Made of aluminum alloy and 1/2" sensor
Easy plug and play USB Interface camera

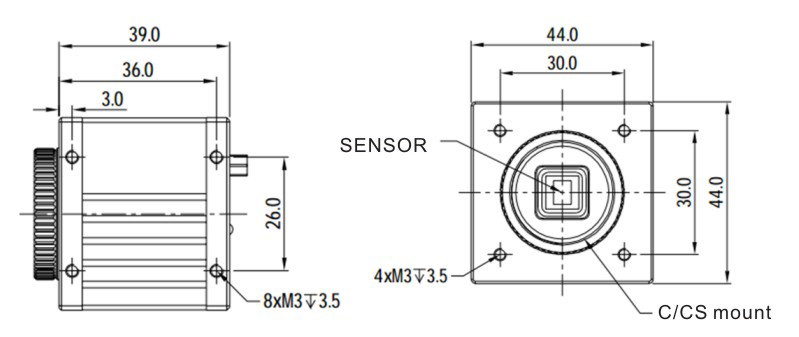

Product Dimension

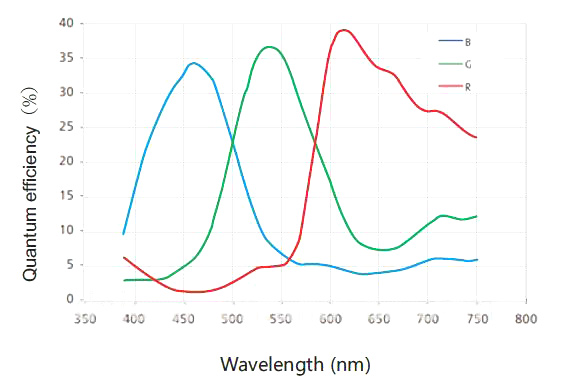

The spectral response curve
shenzhen 3.0MP color 1/2" industrail camera
