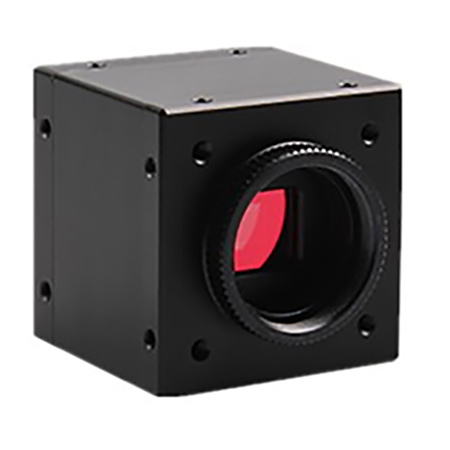

Industrial 1/2.7" Monochrome USB 1.3MP Mini Camera
Industrial 1/2.7" Monochrome USB 1.3MP Mini Camera
Aperture:
Sensor:
Mount Type:
Resolution:
Industrial 1/2.7" Monochrome USB 1.3MP Mini Camera
U3MC CAMERA SERIES:
Features:
Maximun 250FPS for high speed request.
USB3.0 High speed transmission.
Low noise for darkness conditions
Multiple camera system support (4pcs for 1 PC)
Free driver, software, SDK, for your developing
Parameters:
Model | U3MCV1M3GS-120FM | ||||
Sensor Size | 1/2.7” CMOS Monochrome | ||||
Resolution &Frame | Resolution | Pixels | Mode | Frame | Display Rate |
1280 × 1024 | 1.3M | Max Resolution | 120fps | 5：4 | |
640 x 512 | 0.30M | SUM2 | 120fps | 5：4 | |
752 × 480 | 0.36M | ROI（Same View） | 249fps | 16：10 | |
Any ROI | |||||
Pixels Size | 4.0um | ||||
Scan | Progressive | ||||
Shutter | Global Shutter | ||||
Trigger Mode | Hardware/ Software Trigger | ||||
Exposure Time | 8us ～ 65ms | ||||
Gain | 1x – 6x Length: 0.125x | ||||
ADC Bit | 12bit | ||||
Image Data | 8bit RAW，BMP 24bit | ||||
Spectrum Response | 380nm ～ 1050nm | ||||
Exposure Control | Auto / Manual / Area | ||||
Multiple Camera | 4pcs | ||||
Camera ID | Customized | ||||
Image Format | RAW, BMP, JPG, PNG | ||||
Programmable Control | Image Size, Exposure Time, Gain, GAMMA, Contrast, Black Level, Sharpness, 2D/3D Noise Reduction, Eliminate screen flash | ||||
PC System | Windows XP 32Bit；Windows 7/8/8.1/10 （32/64Bit） | ||||
Interface Interface | DirectShow / TWAIN | ||||
Interface | USB3.0 5Gbps | ||||
Power Supply | USB 5V <1.8W | ||||
Operating Condition | Temperature：0℃ ~ 50℃; Humidity：10% - 90%RH | ||||
Storage Condition | Temperature：-20℃ ~ 60℃; Humidity: 10% - 60%RH | ||||
Lens Mount | C | ||||
Dimension | 29mm x 29mmx 29mm | ||||

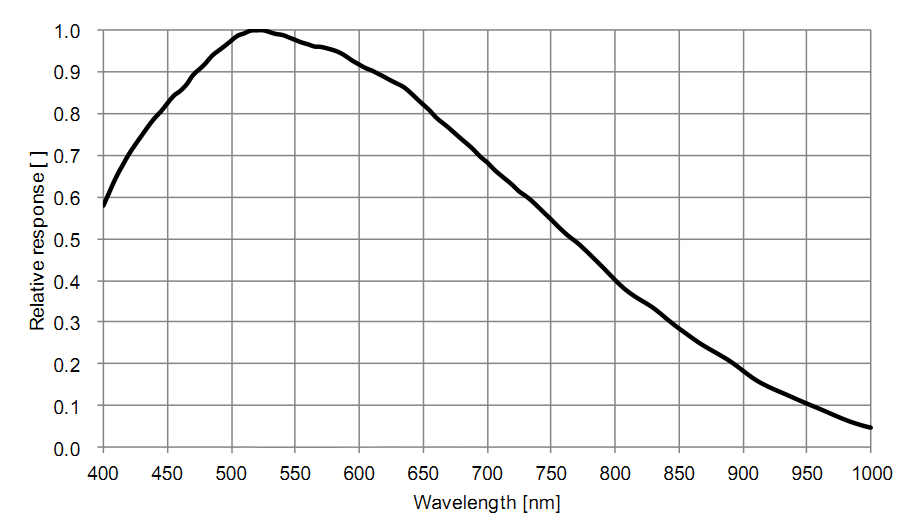

Spectrum Response
Applications:
CCD&CMOS Camera for Machine Vision Systems and Optical Solutions
