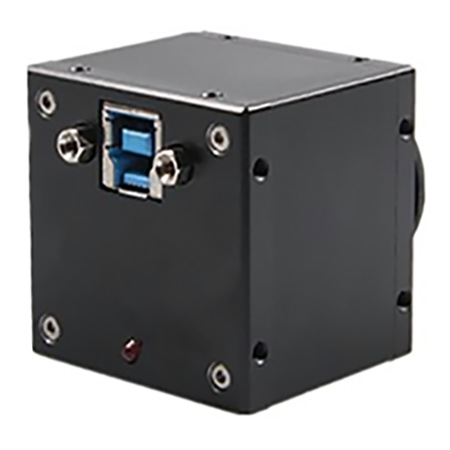

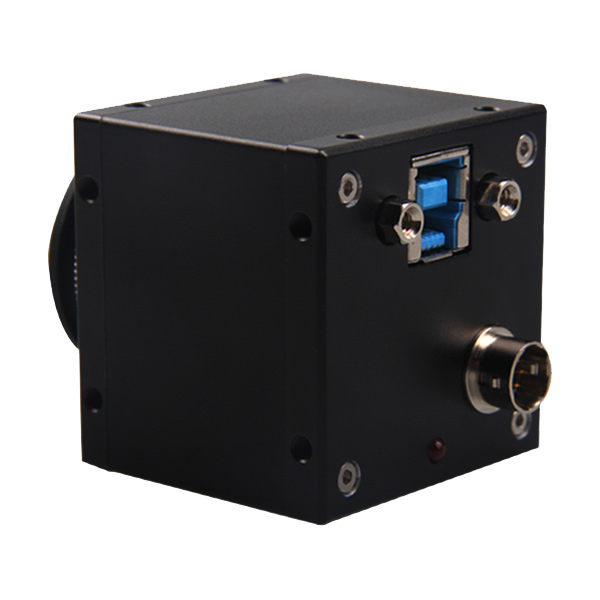

High sensitivity with longer exposure 2MP 1/1.2" CMOS USB3.0 camera(U3S2MGS-40FC)
High sensitivity with longer exposure 2MP 1/1.2" CMOS USB3.0 camera(U3S2MGS-40FC)
SKU: U3S2MGS-40FC
Aperture:
Mount Type:
Resolution:
$739.00
Price: $642.60 - $739.00
Weight: 0.3 kg
High sensitivity with longer exposure 2MP 1/1.2" CMOS USB3.0 camera
Parameter
| Model | U3S2MGS-40FC | |||||
| Pixels | 2MP(color) | |||||
| Sensor Size | 1/1.2" CMOS | |||||
| Pixel Size | 5.86μm x 5.86μm | |||||
| Max Resolution | 1920(H) x 1200(V) | |||||
| Frame rate | 40fps | |||||
| Trigger Mode | Software Trigger | |||||
| ROI | Any ROI | |||||
| Shutter | Global shutter | |||||
| Exposure Time | 20μs ~ 42s | |||||
| Spectral Range (nm) | 380nm~650nm | |||||
| ADC Bit | 12bit | |||||
| Working Mode | Software trigger | |||||
| Software Interface | DirectShow/Twain | |||||
| Firmware Update | Yes | |||||
| Exposure | Manual / Auto/ Area Exposure | |||||
| White Balance | Manual/One-time/Automatic/Area (Only for color camera) | |||||
| Image processing | Image size/ Exposure/ Gain/ GAMMA / Contrast/Black Level/ Sharpness/ RGB Gain/ Saturation 2D,3D Noise Reduction/(Saturation only for color camera) | |||||
| Image Format | RAW, BMP, JPG, PNG | |||||
| Product ID | user-defined | |||||
| Systems | Windows 7 (32bit/64bit); Windows 8 (32bit/64bit); Windows 8.1 (32bit/64bit)/Window 10(64bit) | |||||
| Data Interface | USB3.0 Type-B | |||||
| Transmission Distance | 5 meters | |||||
| Trigger Port | 6PIN Connector,1*flashlight output interface | |||||
| Rated Power(W) | <2.0W | |||||
| Working Temperature | 0~50°C | |||||
| Working Humidity | 10~90%RH( No condensation) | |||||
| lens Mount | C Mount | |||||
| Product Size (mm) | 44mm * 44mm * 39mm(Exclude lens extension ring) | |||||
| Weight | Approx 150g | |||||
| Certificate | CE/ROHS | |||||
Built-in 32 MB buffer ensure image transmission more stable and faster
Plug and play interface
1) Ten yearsR&D and export experience
