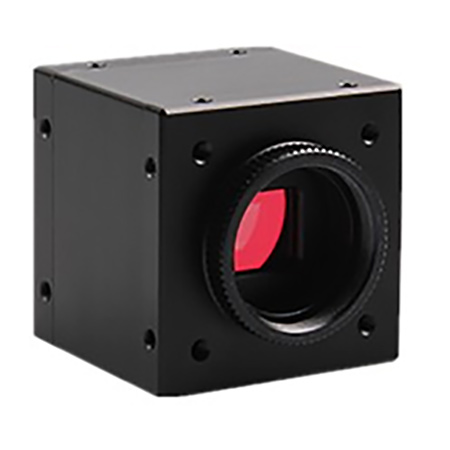

Color 1/1.2" 5.86um global shutter Sony IMX249 2MP 1080P C Mount USB 3.0 40fps Camera

Color 1/1.2" 5.86um global shutter Sony IMX249 2MP 1080P C Mount USB 3.0 40fps Camera

SKU: U3CH2MGS-40FN

Aperture:

Sensor:

Mount Type:

Resolution:

$739.00
Price: $642.60 - $739.00
Weight: 0.3 kg

Color 1/1.2" Sony IMX249 2MP 1080P C Mount USB 3.0 40fps Camera

Product Description

U3CH CAMERA SERIES:

Features:

  1. Maximun 20 megapixels for your high resolution request.

  2. USB3.0 High speed transmission. 40fps@full resolution

  3. Low noise for darkness conditions

  4. Multiple camera system support

  5. Free driver, software, SDK, for your developing

Parameters:

ModelU3CH2M-40FN
Pixels2.3 MP
Sensor Size1/1.2"
Sensor ModelSony IMX249
Pixel Size5.86um x 5.86um
Shutterglobal shutter
Resolution / Frame rate1920x 1200(Full resolution): 40FPS
Lens MountC/CS Mount
Spectrum Response380nm~1050nm
exposure time20us~42s

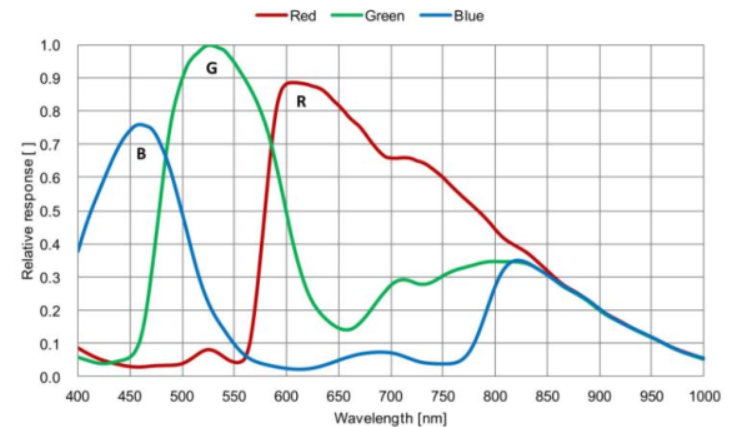

Spectrum Response

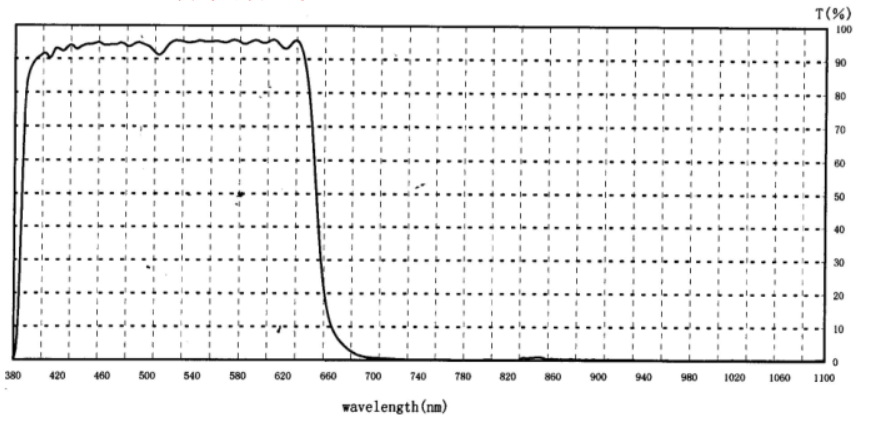

image.pngTransmission for IR-CUT 650nm filter.
