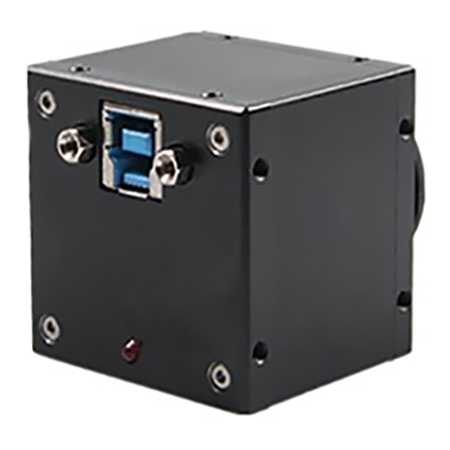

20MP 1" CMOS 3.1um 9.6fps Rolling shutter USB3.0 color microscope camera
20MP 1" CMOS 3.1um 9.6fps Rolling shutter USB3.0 color microscope camera
SKU: U3CH20MRS-9FC
Aperture:
Mount Type:
Resolution:
$1,560.00
Price: $1356.50 - $1560.00
20MP 1" CMOS 3.1um 9.6fps Rolling shutter USB3.0 color microscope camera
Parameter
| Model | U3CH20MRS-9FC | |||||
| Pixels | 20MP(color) | |||||
| Sensor Size | 1" CMOS | |||||
| Pixel Size | 3.1μm x 3.1μm | |||||
| Max Resolution | 5472(H) x 3678(V) | |||||
| Frame rate | 9.6fps | |||||
| BIN | 2x2/3x3/4x4 | |||||
| ROI | Any ROI | |||||
| Shutter | Rolling shutter | |||||
| Exposure Time | 0.38ms ~ 60s | |||||
| Spectral Range (nm) | 380nm~650nm | |||||
| Image data format | 8bit/12bit Optional | |||||
| Working Mode | Continous output/software trigger | |||||
| Software Interface | DirectShow/Twain | |||||
| On-board buffer | 64MB | |||||
| Exposure | Manual / Auto/ Area Exposure | |||||
| White Balance | Manual/One-time/Automatic/Area (Only for color camera) | |||||
| Image processing | platform integrated | |||||
| User Memory | 32K bit | |||||
| Product ID | user-defined | |||||
| Systems | Windows XP (32bit); Windows 7/8/8.1/10 (32bit/64bit) | |||||
| Data Interface | USB3.0 Type-B | |||||
| Transmission Distance | 5 meters | |||||
| Trigger Port | N/A | |||||
| Rated Power(W) | <2.0W | |||||
| Working Temperature | 0~50°C | |||||
| Working Humidity | 10~90%RH( No condensation) | |||||
| lens Mount | C Mount | |||||
| Product Size (mm) | 44mm * 44mm * 39mm(Exclude lens extension ring) | |||||
| Weight | Approx 150g | |||||
| Certificate | CE/ROHS | |||||
Built-in 32 MB buffer ensure image transmission more stable and faster
Plug and play interface
