Mini Mono 0.36MP @112FPS support Linux USB2.0 Industrial camera
Mini Mono 0.36MP @112FPS support Linux USB2.0 Industrial camera
Catalog:
SKU: U2CM3GS-112FM
Aperture:
Sensor:
Resolution:
$335.00
Price: $291.30 - $335.00
Weight: 0.3 kg
Mini Mono 0.36MP @112FPS support Linux USB2.0 Industrial camera
parameter
| Mode | M2S036M |
| Sensor | Aptina: MT9V032C12STMES, 1/3”mono CMOS,6.0um |
| Resolution&FPS | 752 × 480(MAX) 112fps |
| 640 × 480 (ROI) 133fps | |
| 640 × 420(ROI) 150fps | |
| 320 × 240 (SKIP) 262fps | |
| ANY ROI | |
| Pixel Size | 4.51mm × 2.88mm |
| Scanning Type | Progressive Scanning / Continuous Output |
| Sensitivity | 4.8V / Lux-sec |
| Shutter | Global Shutter |
| Trigger Mode | Software/hardware Trigger |
| Exposure Time | 17us ~ 10s |
| Gain | 1 – 8; Length: 0.125 |
| Spectral Response | 380nm ~ 1050nm |
| Exposure Mode | Auto / Manual / Area |
| Firmware Update | Remote Update |
| Product ID | Yes |
Image Format | RAW, BMP, JPG, PNG |
PLC | Image size; Exposure time; Gain; GAMMA; Flicker Elimination; Contrast; Black level; Sharpness; 2D/3D Noise reduction |
| Power Supply | USB 5V Supply, Power Dissipation: <1.2W |
| Operating Conditions | Temperature: 0°C ~ 50°C;Humidity: 10% - 90%RH(non-condensing) |
| Storage conditions | Temperature: -20°C ~ 60°C; Humidity: 10% - 60%RH |
| Lens mount | C Mount |
| Dimension | 29 mm x 29mm x 29.5mm(exclude lens mount) |
| Weight | 41g |

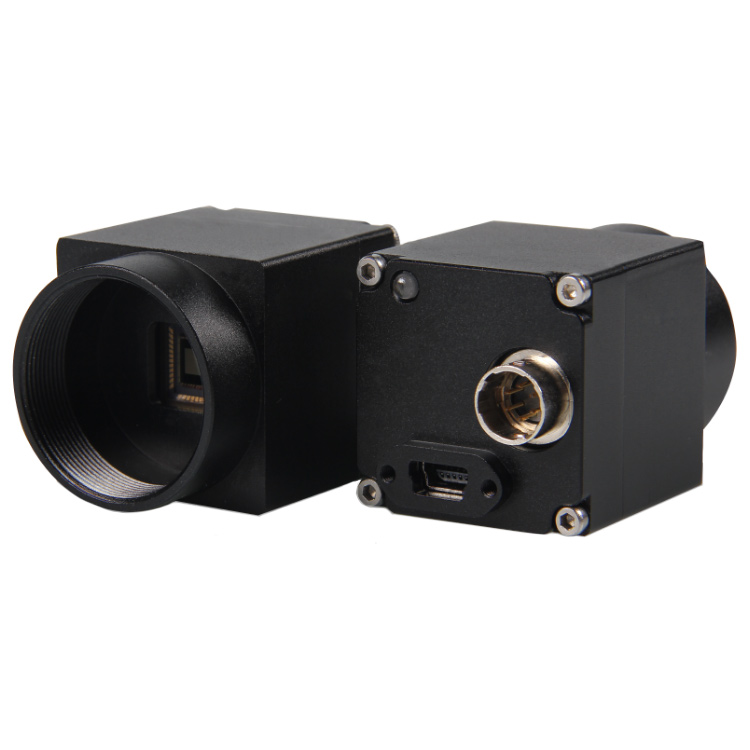

M2S036M USB2.0 CMOS camera
Produce Size: 29*29*29 mm
Product Dimension

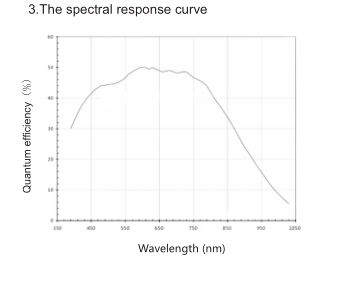

The spectral response curve
