SU3GS2M3-150FM USB3.0 industrial camera module global shutter 1920x1200 150FPS Python2000

Products:
SU3GS series USB 3.0 industrial camera SU3GS2M3-150FM using an image sensor ON Semiconductor's global exposure monochrome CMOS chip PYTHON 2000, a resolution of 1920 × 1200, a frame rate of 150fps.
SU3GS2M3-150FM camera realize image transmission speed in a compact form factor, it can help you better and more efficient completion of work.
SU3GS2M3-150FM USB3.0 industrial camera has three models, namely SU3GS2M3-150FC, SU3GS2M3-150FM and SU3GS2M3-150FN, suffix C represents a color camera, M represents a monochrome camera, N represents a near-infrared enhanced camera.
Features

1. from VGA resolution to 14MP

2. the maximum frame rate of up to 810fps

3. compact design, only 30mm x 29mm x 29mm

4. suitable for C or CS lens

5. a single wire solution, USB 3.0 data transfer is complete and while the power supply

6. the flexible IO setting, low latency and jitter

application
robotics packaging, printing detecting measurement, detection systems
industrial image processing art pick and place equipment medical
product parameters:

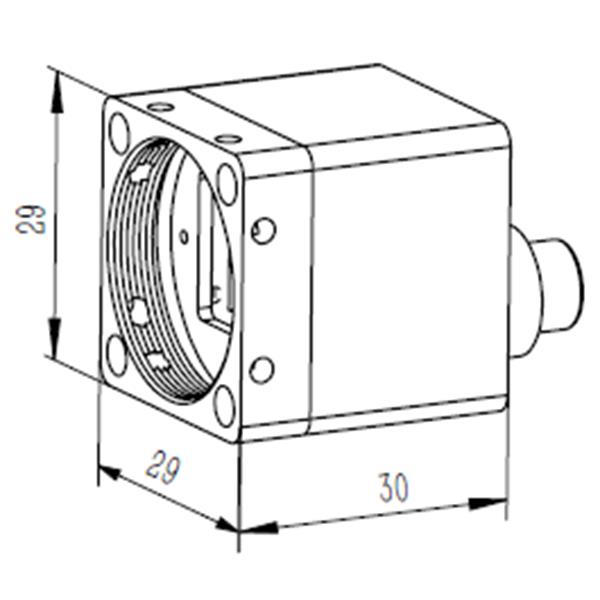

dimensions

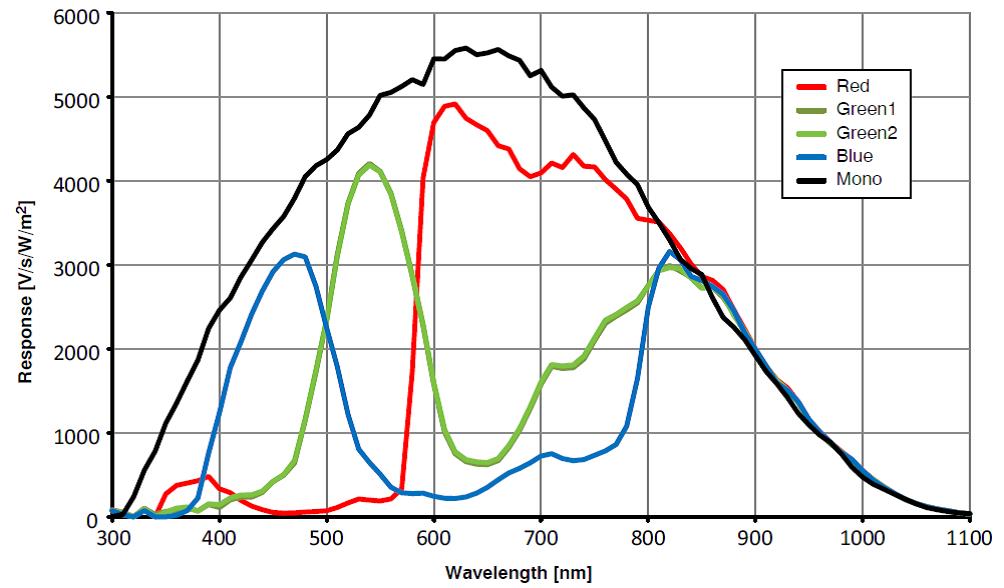

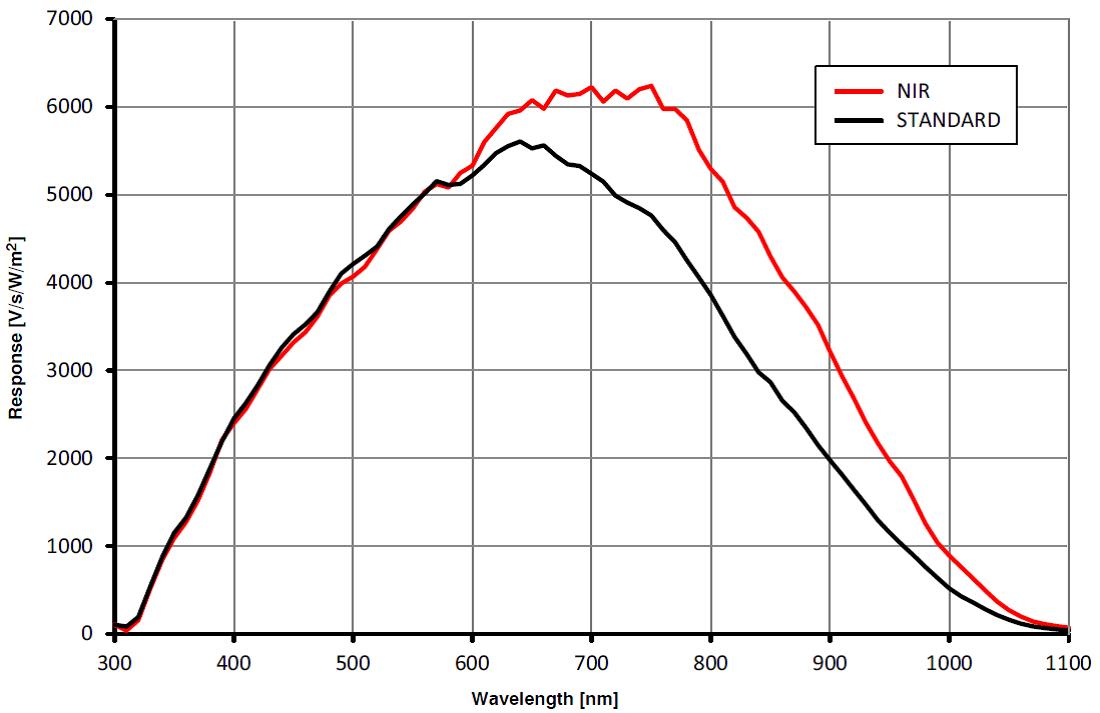

corresponding curve of the sensor :

product list:
1, industrial camera 1pc
2, USB3.0 Cable 1pc
