1/2 Monochrome MT9M001 1.3MP Mini USB2.0 Industrial Grade Camera
1/2 Monochrome MT9M001 1.3MP Mini USB2.0 Industrial Grade Camera
Sensor:
1/2 Monochrome MT9M001 1.3MP Mini USB2.0 Industrial Grade Camera
USB2.0
Mini size, 29x29x29mm;
high speed up to 150fps;
cost effective
| Mode | U2C3M-12FM |
| Sensor | Aptina: MT9M001C12STM |
| Sensor Size | 1/2” CMOS (mono) |
| Pixel Size | 5.2*5.2um |
| Resolution&FPS | 1280 × 1024(MAX) 30fps |
800 × 600(ROI) 80fps | |
640 × 512(SUM2) 30fps | |
640 × 480(ROI) 120fps | |
| Any ROI | |
| Pixel Size | 6.66mm × 5.32mm |
| Scanning Type | Progressive Scanning / Continuous Output |
| Sensitivity | 2.1V / lux-sec |
| Shutter | Electronic Rolling Shutter |
| Trigger Mode | Software Trigger |
| Exposure Time | 28us ~ 262ms |
| Gain | 1 – 4;length: 0.125 |
| Spectral Range | 380nm ~ 1050nm |
| Exposure Mode | Auto / Manual / Area |
| Firmware Update | Remote Update |
| Product ID | Yes |
Image Format | RAW, BMP, JPG, PNG |
PLC | Image size;Exposure time;Gain;GAMMA;Flicker Elimination;Contrast;Black level; Sharpness;2D/3D Noise reduction |
| Indicator Light | On while power on&stand-by, Flashing while working |
| Power Supply | USB 5V Supply, Power Dissipation: <1.2W |
| Operating Conditions | Temperature: 0°C ~ 50°C;Humidity: 10% - 90%RH(non-condensing) |
| Storage conditions | Temperature: -20°C ~ 60°C;Humidity: 10% - 60%RH |
| Lens mount | C mount |
| Dimension | 29mm x 29mmx 29mm(exclude lens mount) |
| Weight | 38g |
M2S series cameras are upgraded based on CFM series cameras, it is new generation
cameras, with smallest size casing, high performance an quality, but at low prices. specially used in machine vision, industrial inspection, and so on.
Mini size,29x29x29mm
CNC machine made casing
Plug and play mini USB2.0 interface with screw lock

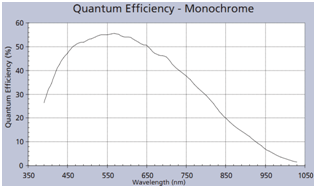

Spectral Range
Product dimension:
